Observation of Lithiation of Graphene
November 26, 2018 – A battery made of just two graphene sheets has been charged and discharged inside the Cc/Cs-corrected SALVE microscope at 80 kV. Researchers from Stuttgart, Ulm, Dresden and Aalto watched lithium enter the bilayer and, unexpectedly, form a crystal of several close-packed layers instead of the sparse LiC6 known from graphite. Such superdense lithium normally appears only at very low temperatures or extreme pressures. The crystals grew and vanished reversibly with the applied voltage, pointing to new ways of storing ions in 2D layered materials.
Every time a lithium-ion battery is charged, lithium ions slip in between the carbon layers of its anode, yet nobody had watched where exactly they settle. Scientists from the Max Planck Institute for Solid State Research in Stuttgart, Ulm University, the Helmholtz-Zentrum Dresden-Rossendorf and Aalto University in Finland have now followed this process atom by atom. They built a miniature battery from just two graphene sheets and watched it charge and discharge in the Cc/Cs-corrected SALVE microscope at 80 kV. Between the sheets, lithium did not form the expected sparse LiC6 arrangement but a crystal of several close-packed layers, a superdense phase that normally appears only at very low temperatures or extreme pressures.
Why lithium is hard to see
Since 2004 it has been possible to extract single carbon layers, graphene, from graphite[1]. With its uniform hexagonal lattice and its tiny thickness, graphene is particularly well suited as a support in transmission electron microscopy (TEM)[2],[3]. Earlier work had already shown that lithium moves much faster in an electrochemical cell made of only two graphene sheets[4],[5] than in graphite[6]. Now this cell has been studied with deep sub-ångström resolution by in situ low-voltage TEM, using correction of both the spherical (Cs) and the chromatic (Cc) aberration[7]. The observation extends in situ TEM studies of light elements encapsulated in quasi one-dimensional[8] or two-dimensional[9] materials.
Lithium batteries, developed since the 1960s, offer high energy density, high cell voltage and a long shelf life. Yet it has remained disputed in which form the lithium is stored in carbon and how the intercalation proceeds. The reason is that such a dynamic process is very hard to observe in situ, that is, live, at the atomic level: lithium scatters electrons only weakly and is easily knocked out of place by the beam. Increasing efforts have been devoted to imaging lithiation with in situ TEM[10]–[13], but only a few studies addressed the lithiation of pure graphene sheets[14],[15]. The new work determined the exact structure of the lithium that forms between two graphene sheets.
A battery made of two graphene sheets

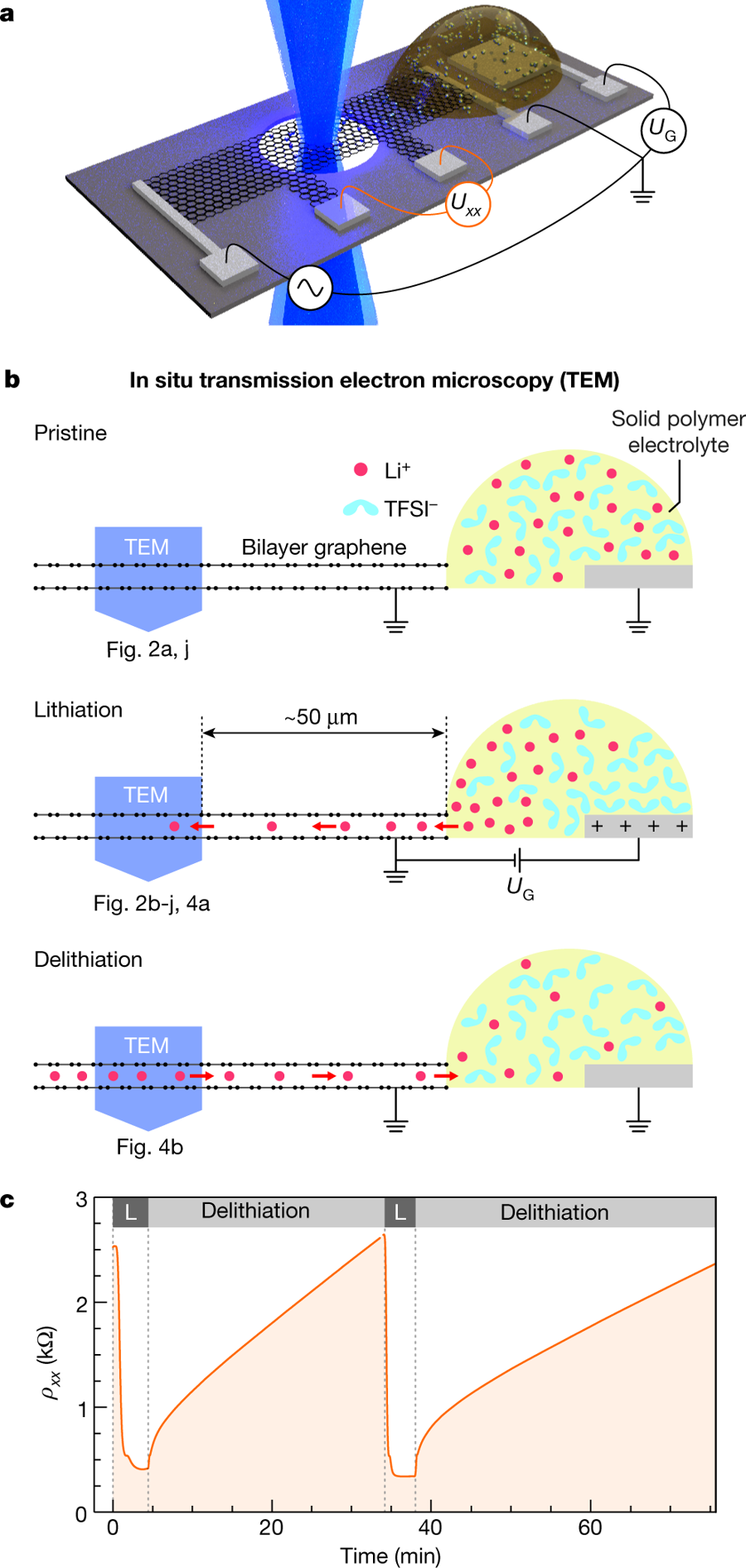

The miniature battery (Fig. 1) sits on a silicon chip covered with silicon nitride, which forms a 40 µm × 40 µm membrane at the centre. A bilayer graphene flake, exfoliated from natural graphite, was etched into a Hall bar shape. One end of the flake is connected to a counter electrode via a solid polymer electrolyte that conducts lithium ions. A voltage of UG = 5 V on the counter electrode lithiates the bilayer, and UG = 0 V delithiates it. Because lithium spreads very quickly within the bilayer, the team could study its ordering about 50 µm away from the electrolyte, where the graphene hangs freely over a hole in the membrane, and keep the electrolyte out of the electron beam.
Metal contacts along the stripe let the researchers follow lithiation electrically as well. Inside the microscope, the resistivity ρxx of the bilayer dropped during lithiation and returned to its initial value during delithiation, cycle after cycle (Fig. 1c). To avoid damaging the graphene, the electrons were accelerated with 80 kV, just below the threshold for knock-on damage of carbon atoms in graphene[16].
Kaiser and her team at Ulm University already use this graphene cell, filled with materials that would otherwise be unstable, to study their structure and electrical properties, from doping and defects in 2D materials[4],[5] to dynamic processes such as crystallization at the atomic level[17]. The hexagonal graphene lattice can easily be removed from the TEM image, which leaves individual molecules and very light elements visible with high contrast and resolution. The high pressure between two graphene sheets[17] also confines the enclosed material and can produce phases that normally form only at very low temperature or high external pressure, which makes the graphene cell well suited for battery research. “Right now, we have the experimental instruments and the theoretical model simulations available, the HRTEM in combination with graphene and density functional theory (DFT) calculations, so that a detailed study of the intercalation on the atomic scale becomes possible,” Kaiser said. “The results of this research project are of fundamental importance for battery research, as they provide insights into the course of elementary processes in electrochemical energy storage.”
A second lattice appears

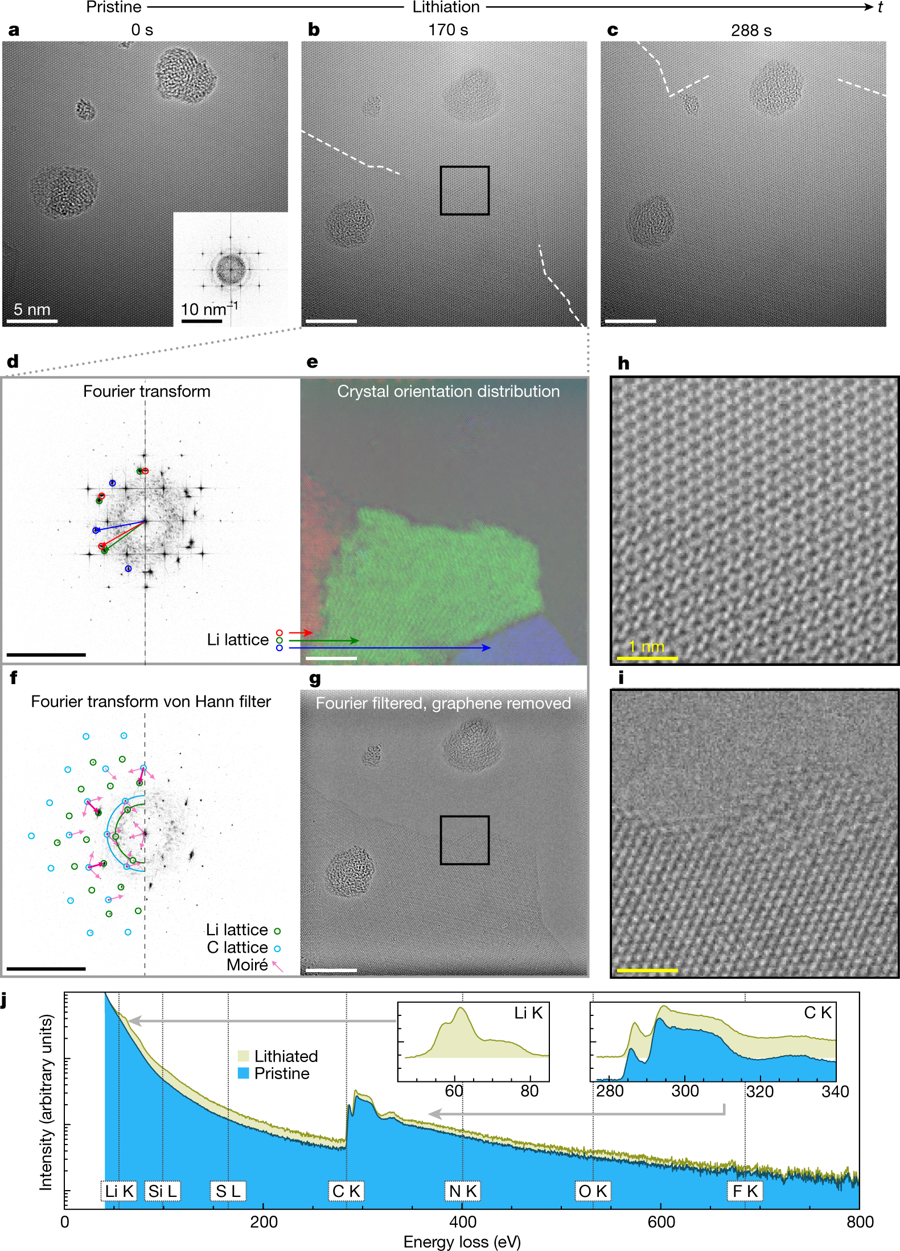

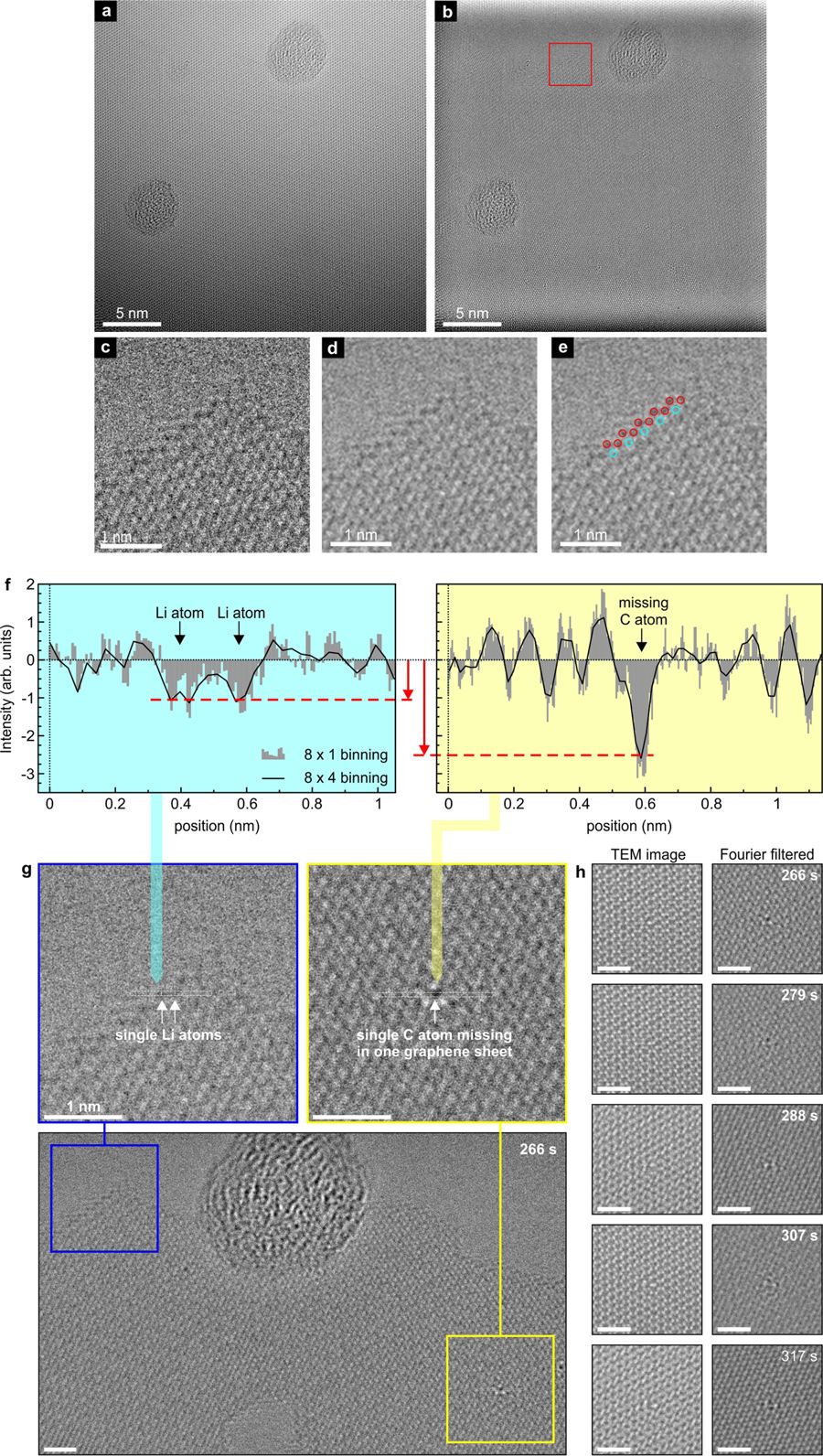

The first image of the series shows pristine bilayer graphene with its lattice constant of 2.46 Å (Fig. 2a). After the lithiating voltage was switched on, a second crystal lattice appeared in the lower half of the image within 170 s, and after 288 s it covered almost the whole field of view (Fig. 2b, c). Its Fourier transform revealed three sets of additional spots: hexagonal order like graphene, but with an in-plane lattice constant of 3.1 Å, split into three grains, none of them aligned with the graphene lattice (Fig. 2d, e). Filtering the graphene lattice and the moiré effects out of the images gave a direct view of the encapsulated crystal (Fig. 2f–i). The SALVE microscope resolved the carbon lattice down to about 0.07 nm and the lithium lattice down to about 0.09 nm; at the leading edge of the crystal, where it is thinnest, even single lithium atoms could be identified (Fig. 3).
Pure, close-packed lithium

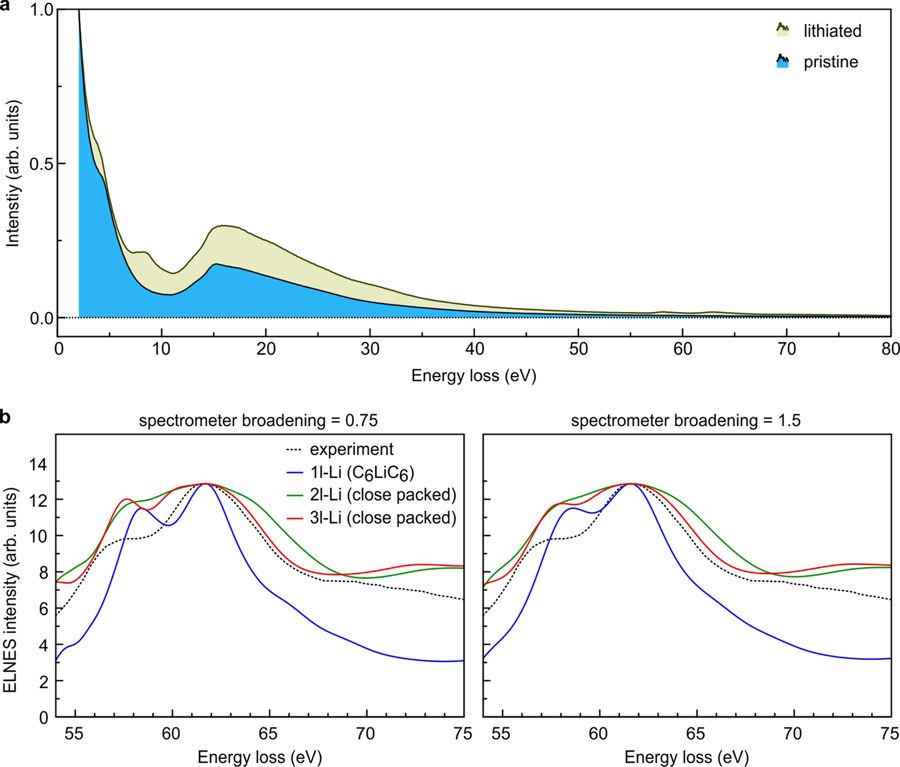

Electron energy-loss spectroscopy (EELS) told the team what the new crystal is made of (Fig. 2j). Before lithiation, only the carbon K-edge at 284 eV appeared; during lithiation, the lithium K-edge at 55 eV was detected as well. No other element showed up between 0 and 800 eV, and both the low onset and the shape of the lithium edge[18],[19], together with a lithium plasmon near 9 eV[20],[21], pointed to pure lithium (Fig. 4). Calculated edge shapes for lithium multilayers between graphene matched the measurement. The lattice constant of 3.1 Å matches that of close-packed lithium[22]. This was a big surprise, because lithium normally assumes such a superdense ordering only at very low temperatures and/or extreme pressures[23]. The density of lithium is thus far higher than in LiC6, the densest configuration known for lithium intercalated in graphite under normal conditions.
Denser than LiC6

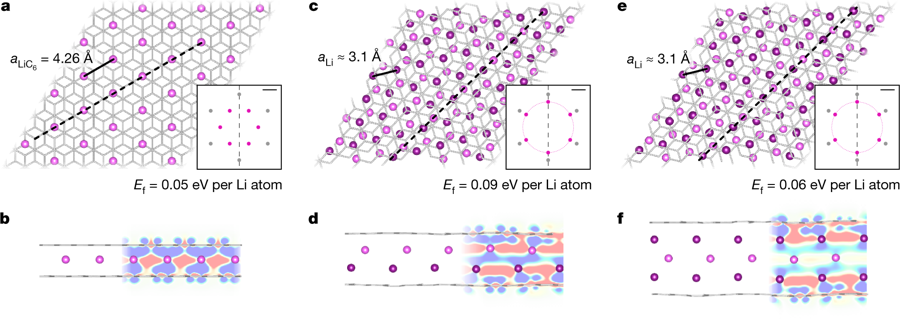

To test whether a dense, multilayered lithium crystal between two graphene sheets is plausible, the team carried out first-principles DFT calculations (Fig. 5). A single layer of lithium relaxed into the familiar C6LiC6 arrangement, with lithium in a (√3 × √3)R30° superstructure and a lattice constant of 4.26 Å, similar to bulk LiC6 in graphite. Two or three close-packed lithium layers, however, cost only 0.01–0.05 eV more per lithium atom, and their in-plane lattice constant of 3.05–3.15 Å matched the measured 3.1 Å. Only the outer lithium layers next to the graphene give up charge, about 0.33 electrons per atom; the inner layers stay metallic. Because the close-packed phase holds so many more atoms, it still puts more electrons into each graphene sheet, 4 × 1014 cm−2 compared with 2.7 × 1014 cm−2 for C6LiC6, which agrees with the resistivity levelling off during lithiation.
Crystals that grow and vanish

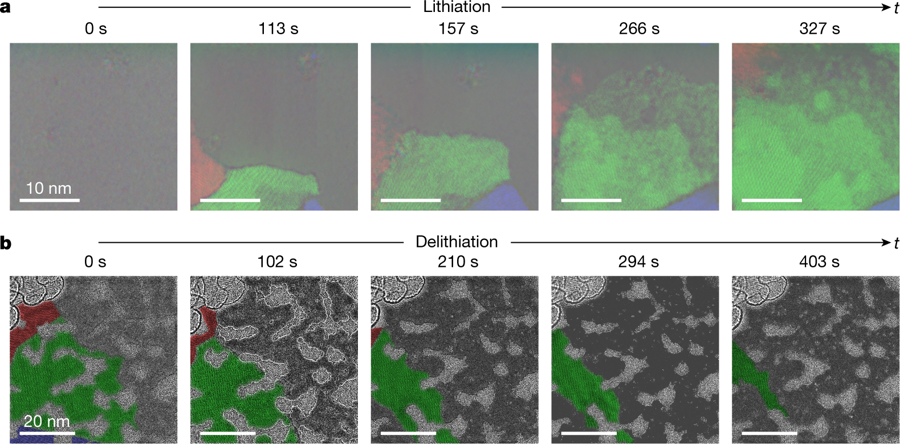

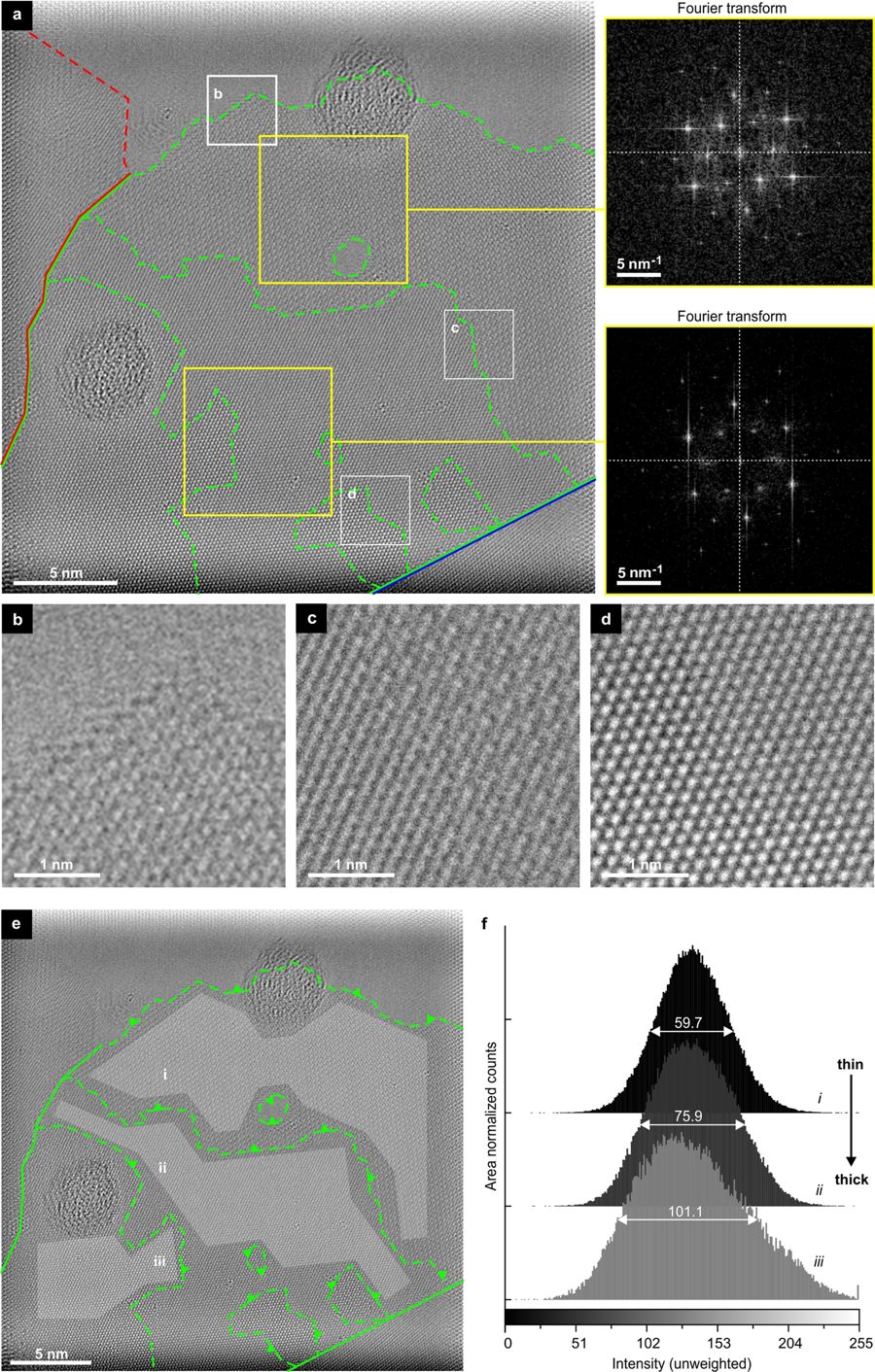

During lithiation, the close-packed lithium grew sideways between the graphene sheets (Fig. 6a and Video 1). In digital dark-field images, the three grains of different orientation appear in red, green and blue. The boundary between the central green grain and the blue grain at the lower right stayed sharp and stable, whereas the boundary with the red grain on the left appeared fuzzier and more mobile, as the two orientations nearly match. Even within one grain, regions of different thickness could be told apart, with the thinner parts towards the edge (Fig. 7). From the image series, the team extracted a lateral growth rate of the order of 1 Å per second. During delithiation, the close-packed phase came apart and gradually disappeared (Fig. 6b), until only the pure bilayer graphene lattice remained. How reversible the process is depends on the defects in the graphene lattice, which form irreversibly under prolonged electron irradiation.
Video 1: TEM image sequence showing the propagation front of a lithium crystal forming inside bilayer graphene during lithiation (Supplementary Video 1 of the paper).
Stable only between intact sheets
The crystalline lithium proved stable only between intact graphene planes. Electrons with more than about 20 keV can displace lithium atoms, so that lithium readily “boils” under the beam[18],[19],[21], and the close-packed phase was volatile near the edges of the bilayer or where the graphene had many defects. Through such edges or defects, the lithium can escape once the beam melts the crystal. The protective encapsulation by two impermeable atomic sheets is thus a prerequisite for safely probing the crystal by TEM, much as in graphene liquid cells[24].
Why so much lithium fits

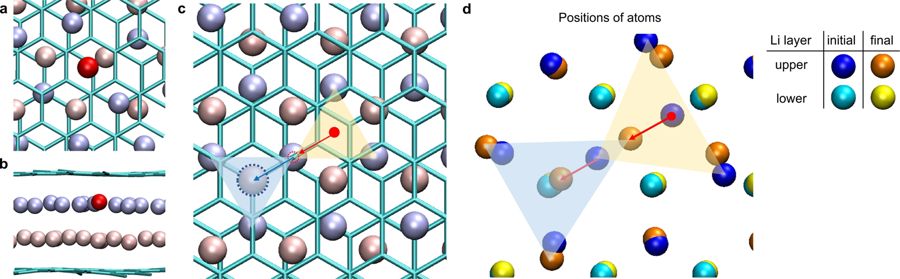

Enhanced lithium storage beyond LiC6 had been proposed before on the outside of graphene planes[25],[26], but the suggested atomic configurations were contradictory and could not be checked by microscopy. Reports of close-packed lithium nanocrystals forming during the lithiation of other carbon forms are scarce and not fully consistent[27],[28]. According to the study, a similar arrangement may even have gone unidentified in bulk graphite at elevated temperatures[29]. Because packing lithium densely into the gap of bilayer graphene costs about as much energy as forming C6LiC6 (Fig. 5), close-packing may be how the system takes up a large amount of lithium supplied within a short time. Calculations of the activation energy showed that lithium diffuses easily between the graphene sheets by an exchange mechanism, even within the close-packed phase (Fig. 8). Two atomic sheets, isolated from their bulk crystal, may spread apart more easily than the layers in graphite and thus allow new types of ordering. Still, the stabilization of a superdense lithium phase came as a surprise, since it had been reserved for extreme conditions[23].
What it opens up
Lithium–graphite intercalation compounds occupy only a small region of the carbon–lithium phase diagram[30]. Beyond LiC6, other configurations may be available for storing larger amounts of lithium in layered carbons[31]. “Our findings thus point to the possible existence of distinct storage arrangements of ions in two-dimensional layered materials as compared to their bulk parent compounds,” the authors conclude. The combination of an on-chip battery, chromatic-aberration-corrected TEM at 80 kV and DFT thus opens a direct view of how ions arrange inside a working electrode. “The range of new phases of materials that form between graphene sheets is remarkably complex and can now be studied in detail. This experimental effort has given us new insight into the functioning of a battery,” Kaiser said. “More complex sample preparation, with assimilation of more observations in the TEM, will allow us to continue to work on gaining fundamental understanding and discovering new materials.”
Resource:
Kühne, M., Börrnert, F., Fecher, S., Ghorbani-Asl, M., Biskupek, J., Samuelis, D., Krasheninnikov, A. V., Kaiser, U., Smet, J. H. (2018).
Reversible superdense ordering of lithium between two graphene sheets.
Nature 564(7735), 234–239.
https://doi.org/10.1038/s41586-018-0754-2
