Magnetic 2D RuCl₃

April 26, 2023 – Layered ruthenium chloride (α-RuCl₃) is one of the few materials in which an exotic magnetic state, the quantum spin liquid, might be realized, yet almost everything known about it comes from bulk crystals. A team from the Universities of Heidelberg, Kassel and Ulm, the Max Planck Institute for Solid State Research in Stuttgart and the Bundeswehr University Munich, together with colleagues at Trinity College Dublin, has now exfoliated α-RuCl₃ in liquid without additives, sorted the nanosheets by size, confirmed their structural integrity with aberration-corrected low-voltage TEM, and followed how magnetism, optical response and stability change with nanosheet size.

Why does a brittle, dark chloride attract physicists who dream of quantum computers? Layered α-RuCl₃ is a candidate for quantum spin liquid states, because its magnetic Ru³⁺ ions sit on a honeycomb lattice with strong relativistic spin–orbit coupling. In the spin-1/2 model with bond-dependent interactions, the Kitaev model, the ground state is a quantum spin liquid (QSL), a topological state that holds the promise of coherent transport of quantum information and of fractional excitations^[1], exotic phenomena in which an electron splits into well-defined quasiparticles. On the Kitaev honeycomb lattice^[2] these take the form of gauge fluxes and Majorana fermions^[3]. So far such fractional excitations exist only in theory; realizing them experimentally in α-RuCl₃ or any other material would count as a breakthrough for quantum computation^[4].

Real crystals are less tidy than the model. Non-Kitaev interactions in RuCl₃ lead to long-range antiferromagnetic order at low temperatures^[5]. In single crystals, this order sets in either in one sharp phase transition at a Néel temperature of T_N = 7 K, as seen in magnetic susceptibility and specific heat^[5], or in a sequence of two transitions at T_N1 ≈ 14 K and T_N2 ≈ 8 K^[6]^–[9]. The number, position and shape of these transitions are thought to depend on the stacking order and stacking faults of the hexagonal Ru³⁺ layers. In polycrystalline samples, single antiferromagnetic transitions have been reported at T_N = 11 K^[10], 13 K^[11] and 15.6 K^[12].

Almost all of this work concerns the bulk. What happens after exfoliation is far less clear, although it matters: delaminating the crystal reduces the stacking disorder that is held responsible for the pronounced antiferromagnetic order^[5]^,[9]. α-RuCl₃ has recently been exfoliated chemically^[9] and electrochemically^[13], but in both cases the material lost its original electronic and magnetic properties because it was electron-doped. An alternative is liquid phase exfoliation (LPE), in which the layers are peeled apart mechanically by the forces that collapsing cavitation bubbles exert on the crystal^[14] and the sheets are stabilized colloidally by suitable surfactants or solvents^[15]. The method has been applied to well over fifteen classes of layered materials, among them transition metal dichalcogenides (TMDs)^[19], transition metal hexathiohypodiphosphates (M₂P₂S₆)^[21]^,[22], III–VI and IV–VI semiconductors^[23], pnictogens^[24], silicates^[25], oxides^[26], hydroxides^[27] and other minerals^[28], as well as synthetic crystals such as organic polymers^[29] and covalent organic 2D frameworks^[30]. Usually neither a phase transition nor heavy doping occurs, which makes LPE a promising route to the layer-number-dependent properties of α-RuCl₃.

AFM images, histograms and power-law plots of size-selected α-RuCl3 nanosheets

Fig. 1: AFM statistics of size-selected nanosheets.

The team led by Claudia Backes, with the Ulm electron microscopy group of Ute Kaiser, therefore exfoliated α-RuCl₃ without any additive by sonication-assisted LPE under inert conditions. To separate the effect of nanosheet size and thickness on the optical and magnetic response, the dispersion was sorted into fractions by established centrifugation techniques^[31], and the lateral size and thickness distributions were quantified by statistical atomic force microscopy (AFM) (Fig. 1). The structural integrity of the nanosheets was checked by a combination of transmission electron microscopy (TEM), Raman spectroscopy, X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS). The magnetic susceptibility was measured for three fractions of different nanosheet size, both in dispersion and on drop-cast films. Extinction and absorbance spectroscopy on the dispersions yielded metrics for the concentration and the average layer number. Finally, time- and temperature-dependent absorbance measurements quantified how stable the nanosheets are in air. How the material was exfoliated and sorted is described in the first box.

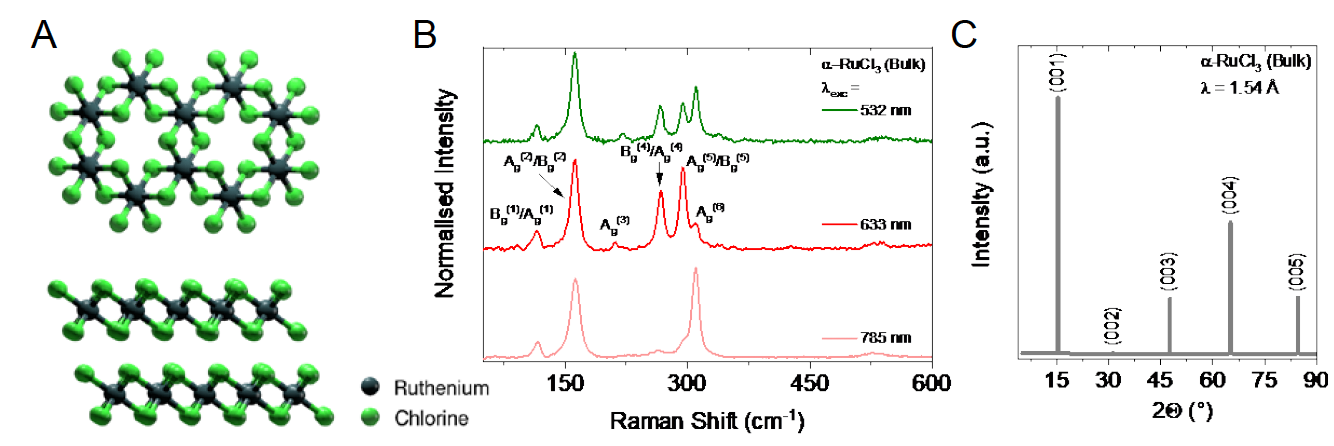

▸ α-RuCl₃: exfoliation and cascade centrifugation

The sorting worked as intended, and statistical AFM on more than a hundred sheets per fraction put numbers to it: both the mean length and the mean layer number fall with increasing centrifugal acceleration as power laws, and thinner sheets tend to be smaller, as is typical for LPE^[38] (Fig. 1). The details of the measurement, including the conversion of AFM height into layer number, are collected in the second box.

▸ α-RuCl₃: AFM statistics and layer number

TEM, HRTEM, EDX maps, Raman, XPS and XRD of exfoliated α-RuCl3 nanosheets

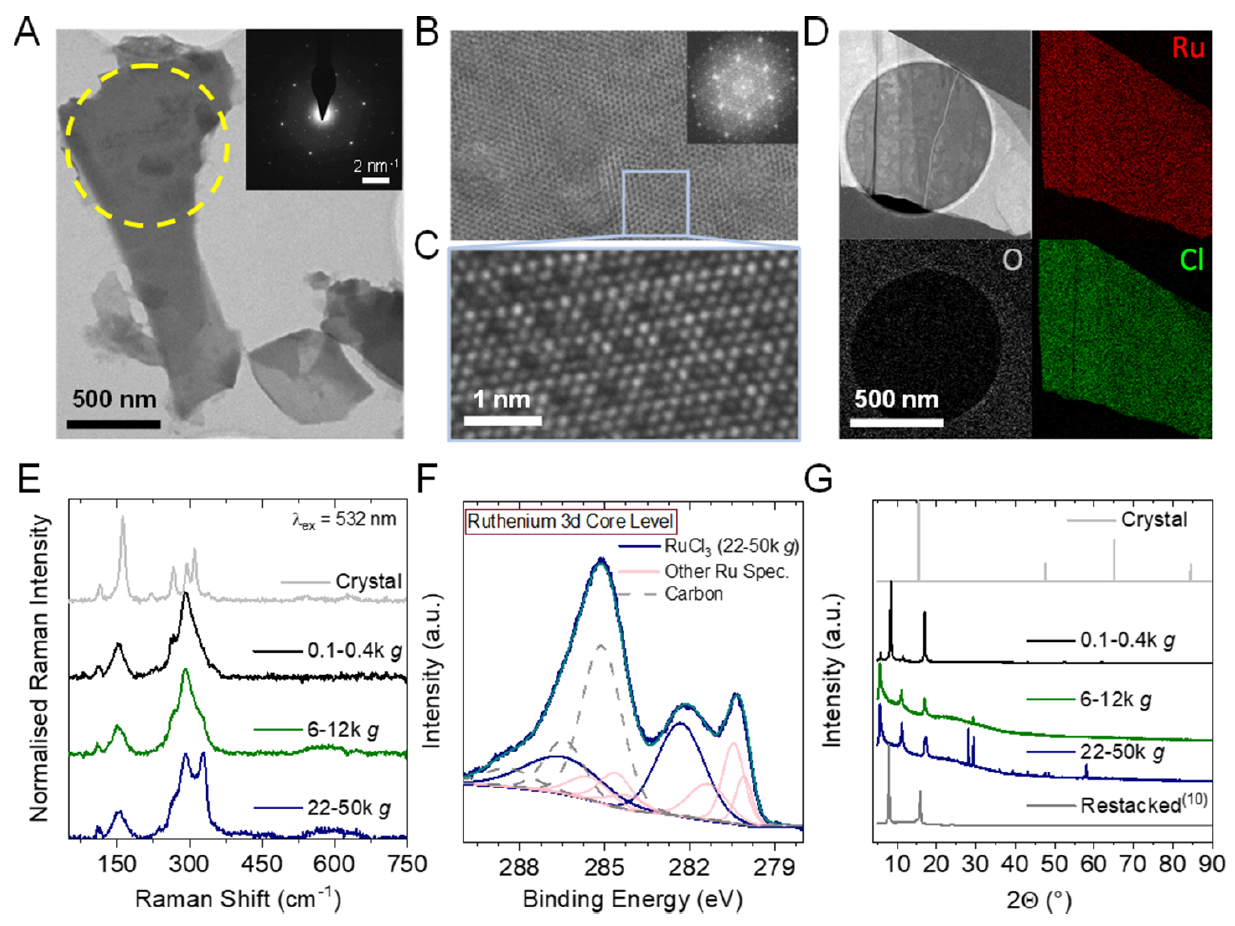

Fig. 2: Structural integrity of the nanosheets.

Are the sheets still α-RuCl₃ after sonication and centrifugation? To answer this, the structural integrity and crystallinity were examined by TEM, Raman spectroscopy, XPS and XRD; the results are summarized in Fig. 2. For TEM, a dispersion from which only the unexfoliated material had been removed at 100 g was drop-cast on Quantifoil grids in a nitrogen atmosphere, a choice that kept exposure to air to a minimum, since the centrifugation had to be done in sealed vials outside the glovebox. CHP residues were removed in the pre-vacuum of the microscope (about 2 × 10⁻⁵ mbar) at 150 °C for 40 min before low-dose high-resolution TEM (HRTEM) at 80 kV. The overview image in Fig. 2A shows a nanosheet several micrometres long with sharp edges, in line with the morphology seen in AFM. Selected area electron diffraction (SAED) from the region marked by the dashed circle gives sharp, bright spots, which confirm the crystallinity of the exfoliated material. The HRTEM images in Figs. 2B and 2C resolve the atomic lattice, and the fast Fourier transform in the inset of Fig. 2B underlines the crystalline character. The images agree well with a simulated trigonal lattice and with the literature^[39].

HRTEM images of α-RuCl3 before and after annealing and simulated images of three RuCl3 polymorphs

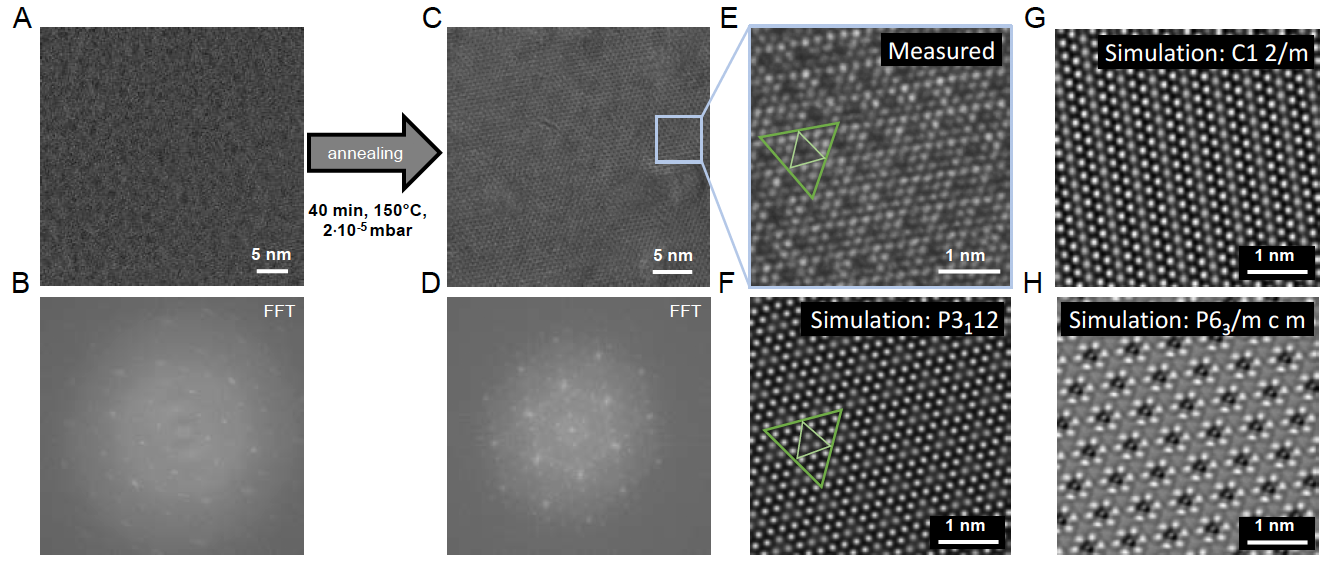

Fig. 3: HRTEM versus simulated polymorphs.

The direct comparison with image simulations was the Ulm contribution, and it also showed what the electron beam does to the sheets (Fig. 3). An earlier study of exfoliated α-RuCl₃^[39] had shown that the two commonly observed phases, trigonal (space group P3₁12^[11]) and monoclinic (C2/m^[37]), can be told apart in high-resolution STEM images along the c* direction of the crystal by their different stacking order. The researchers therefore simulated HRTEM images of six-layer stacks of trigonal α-RuCl₃ (Fig. 3F), of the monoclinic polymorph (Fig. 3G) and, for completeness, of β-RuCl₃ (space group P6₃/mcm^[16], Fig. 3H) along c*, using a multislice code^[40]. The simulation parameters matched the aberration state of the microscope measured before the experiment (C₃ ≈ −7.5 mm, C₅ ≈ 2.7 mm), which gives bright atom contrast at the chosen defocus of about −4 nm^[17]. The experimental image (Fig. 3E) agrees best with the trigonal structure, judged by the different contrast of the atomic columns. It also shows vacancies and stacking defects, recognizable as weaker atomic columns and distorted lattice regions, which are mainly caused by the electron irradiation during image acquisition. Small and thin nanosheets were so beam-sensitive even at 80 kV that their lattice changed substantially under illumination; ultrathin sheets, below about six layers as estimated with the EELS log-ratio method^[18], could not be imaged at atomic resolution at all.

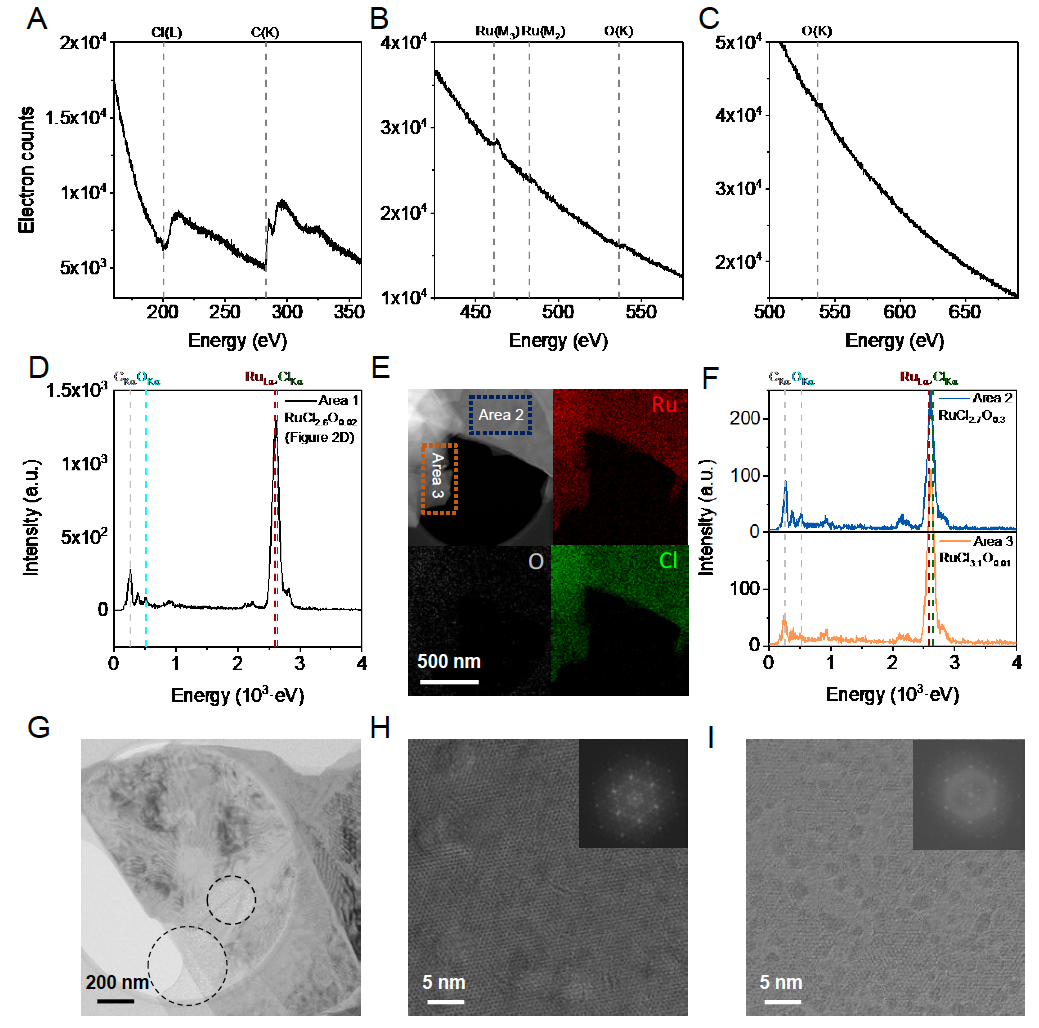

The chemistry was checked in the same microscope. Energy-dispersive X-ray (EDX) mapping in scanning TEM (STEM) on free-standing sheets gave the high-angle annular dark-field image and the elemental maps of ruthenium (red), chlorine (green) and oxygen (white) shown in Fig. 2D. They confirm the stoichiometry and suggest only minute oxidation, a finding backed by core-loss electron energy loss spectroscopy, in which the Cl L and K edges and the Ru M series were resolved while oxygen was barely detectable. For the probed areas the composition came out as RuCl_2.6O_0.02, RuCl_2.7O_0.3 and RuCl_3.1O_0.01.

Individual sheets in the TEM are only part of the picture, and the smallest and thinnest ones cannot be probed there reliably. The team therefore turned to ensemble measurements on drop-cast films: Raman spectroscopy and XPS on gold-coated aluminium supports (Figs. 2E and 2F) and powder XRD on quartz (Fig. 2G), all prepared in an inert atmosphere. Together these methods told a more cautious story than the TEM: Raman showed no sign of decomposition, XPS found only about half of the surface still to be RuCl₃, and XRD revealed extra reflections that could be either decomposition products or an orientation effect. The findings are laid out in the third box.

▸ α-RuCl₃: Raman, XPS and XRD on nanosheet ensembles

Raman spectra of the large, medium and small fractions (0.1–0.4k g, 6–12k g, 22–50k g) are shown in Fig. 2E together with an average spectrum of a single crystal. All modes of the bulk also appear in the exfoliated material, but considerably broadened, which is attributed to finite-size effects and the random orientation of the drop-cast sheets; a similar broadening has been seen in micromechanically cleaved nanosheets^[20]. Since no new modes appear, Raman gives no clear indication of decomposition after LPE and LCC. The decomposition products, however, may simply not be Raman-active or resonant with the excitation wavelength.

Hence XPS was measured as well. The ruthenium 3d core level spectrum of the fraction with the smallest sheets (22–50k g, Fig. 2F) contains, besides the expected RuCl₃ signal, contributions from carbon, elemental ruthenium, ruthenium oxide, hydroxide and oxyhydroxide (RuO₂, Ru(OH)₃ and RuO(OH)₂). Fitting the components indicates that only about 50 % of the sample surface was still RuCl₃ at the time of the measurement, with roughly 10 % of the signal from elemental ruthenium, 21 % from RuO₂ and 16 % from Ru(OH)₃.

The powder diffractograms of the large, medium and small fractions (Fig. 2G) differ from that of bulk α-RuCl₃, shown in grey. Compared with the recently reported pattern of randomly restacked RuCl₃ nanosheets^[9], the most intense Bragg reflections of the exfoliated material appear at similar angles, and they are broadened, which points to structural distortion of the restacked material after drop-casting, in line with the Raman spectra. As the sheet size decreases, more reflections appear that cannot be assigned. They could stem from crystalline degradation products, which would show more clearly in samples with a higher surface-to-volume ratio. Alternatively, they could be an effect of preferential orientation: in large platelets the reflection geometry picks out mainly (001)-type reflections, while in smaller platelets, which lie less flat, out-of-plane reflections gain weight. In that case the additional reflections at higher angles 2Θ would belong to other polymorphs or decomposition products of RuCl₃. Simulations for different lattices and stacking orientations would be needed to decide, in particular because the reflections cannot be assigned to the species seen in XPS^[9]^,[41].

Taken together, the ensemble measurements show that exfoliated α-RuCl₃ is prone to degradation. Since the material was exposed to air in most of these measurements, the degree of oxidation of the pristine sheets cannot be pinned down, but the TEM results, obtained with exposure to oxygen and water kept to a minimum, show very little oxidation of the material as made. The smallest and thinnest sheets are very sensitive to radiation damage in TEM and XPS alike, so their composition could not be determined directly; the absorbance spectra, however, have the same spectral profile for all fractions, which indicates the same initial composition even for the smallest sheets. The authors stressed that liquid-exfoliated nanosheets must be handled with special care, because their reactivity is much higher than that of the solid.

Magnetic susceptibility curves of dispersed and drop-cast α-RuCl3 nanosheets of three sizes

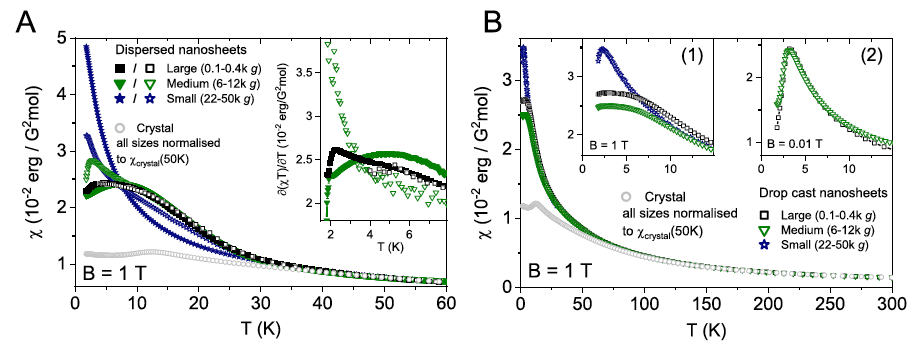

Fig. 4: Susceptibility of dispersed and deposited nanosheets.

With the structure confirmed, the team turned to the question that motivates all interest in α-RuCl₃: its magnetism. The material is considered a possible realization of a two-dimensional QSL in its ground state^[9]^,[42]^,[43]. Most studies so far have used micromechanically exfoliated (ME) nanosheets^[20]^,[39]^,[44], a few have used liquid exfoliation^[9], and none had looked at pristine, undoped nanosheets made by sonication-assisted LPE. Magnetic susceptibility was now measured in a superconducting quantum interference device (SQUID) magnetometer for the large, medium and small fractions, both dispersed in CHP and as drop-cast pellets deposited in an inert atmosphere (Fig. 4). The upshot: no quantum spin liquid, but a clear size effect. The broad antiferromagnetic anomaly of the bulk near 10 K disappears in the nanosheets, while a sharp transition appears at 2–3 K, and it becomes more pronounced the smaller the sheets. The numbers are given in the fourth box.

▸ α-RuCl₃: susceptibility of dispersed and drop-cast nanosheets

Fig. 4A shows the low-temperature magnetic response of CHP-dispersed nanosheets of the three sizes, for two separately exfoliated batches each, together with the starting material. Because the solvent contributes a non-negligible background, the data were scaled to the susceptibility of the crystal at 50 K. The bulk crystal shows a uniform Curie–Weiss-like rise of the magnetization on cooling from room temperature, followed by a broad anomaly at about 10 K that signals long-range antiferromagnetic order. In the dispersion of large sheets (0.1–0.4k g) this anomaly is suppressed; instead a sharp transition appears at T = 2 K (Fig. 4A, inset). The small sheets (22–50k g) show no transition in the accessible temperature range, while one of the two batches of medium-sized sheets (6–12k g) does. The low-temperature response of the small and medium dispersions differs between batches, which the researchers attributed to a combination of material decomposition, solvent effects and partial aggregation of the sheets on cooling.

For the drop-cast pellets (Fig. 4B) the high-temperature susceptibility runs proportional to the bulk. Below 75 K the platelets fall away from the bulk curve, which indicates stronger short-range antiferromagnetic correlations in the bulk than in the platelets. Medium and large sheets behave alike, with a broad, plateau-like hump at about 4 K and a sharp drop at the lowest temperatures (Fig. 4B, inset 1). In a low field of B = 0.01 T the hump turns into a well-resolved peak (inset 2), which marks long-range antiferromagnetic order at T_N = 3 K for the medium and large sheets; at B = 1 T this order is either suppressed or shifted below the accessible range. Reducing the size stabilizes the antiferromagnetic phase: the smallest sheets show a sharp susceptibility peak at 2.2 K even at B = 1 T (inset 1), although, for lack of material, the measurement at 0.01 T did not succeed for this fraction. At the same time the broad hump is absent for the smallest sheets, so their short-range antiferromagnetic correlations in this temperature range are weaker.

The overall tendency is that high-temperature antiferromagnetic correlations are suppressed on size reduction, while a sharp, rather 3D-like antiferromagnetic phase transition is stabilized. The authors argued that the low-temperature antiferromagnetic phase of the solid nanosheet samples is probably of the same nature as the phase marked by the sharp drop in susceptibility of the dispersed samples.

$Optical extinction and absorption spectra of α-RuCl3 nanosheet fractions and peak position versus layer number$
Fig. 5: Optical metrics for concentration and layer number.

Size also leaves its mark in the optical spectra, though a surprisingly faint one. The size-selected fractions were measured by extinction and absorbance spectroscopy in transmission, where the extinction is the sum of absorption and scattering; to separate the two, the dispersions were additionally placed in the centre of an integrating sphere, which collects the scattered light, and the concentration of each fraction was determined by gravimetric weighing. As expected, large sheets scatter more than small ones (Figs. 5A and 5B), but compared with other LPE nanosheets such as TMDs, Ni₂P₂S₆ or layered hydroxides^[21]^,[22]^,[27], the scattering contribution is much smaller. All fractions show two broad features at about 370 and 550 nm, and the extinction coefficient at 400, 500 and 600 nm hardly varies with sheet size (Fig. 5D, inset). This is unusual, because size-dependent scattering, edge and confinement effects and dielectric screening normally change the spectra of nanosheets in characteristic ways^[21]^,[33], but it has a practical benefit: size-independent coefficients allow the concentration of α-RuCl₃ dispersions to be determined reliably by the Beer–Lambert law. The subtler systematic shifts, from which the team derived metrics for the layer number, are in the fifth box.

▸ α-RuCl₃: spectroscopic metrics for layer number and size

Because the masses from gravimetry carry an uncertainty that propagates into the coefficient spectra, size-dependent trends were also studied on normalized spectra. These vary only slightly across the fractions, but exposure to air, especially at elevated temperature, changes the spectral profile markedly, so the samples start out with the same composition and their degradation can be followed by absorbance (see below). Intensity ratios in extinction or absorbance spectra usually scale with the lateral size, because edges and basal planes contribute differently to the electronic structure. The peak intensity ratio 370 nm/555 nm was therefore plotted against the mean lateral size from AFM and fitted with a previously reported model^[45]. The fits are reasonable, but the change in the ratio is too small for a reliable size determination from UV–Vis spectroscopy alone.

The positions of the optical transitions shift systematically as well. Such shifts are often attributed to confinement and dielectric screening of excitons and typically scale with the layer number^[21]^,[33]. The centre-of-mass position of the peak at 375 nm, determined from the second derivative of the spectra (Fig. 5E), red-shifts with increasing nanosheet dimensions in both the extinction and the absorbance spectra and follows an empirical scaling with the mean layer number from AFM (Fig. 5F), in agreement with previous reports. This allows electronic transitions to be compared across material systems and gives a layer-number metric from either spectrum. The fit parameters are listed in Table 1 of the paper: for extinction, A₁ = −0.0019 nm⁻¹, B₁ = 1.68, A₂ = −0.0010 nm⁻¹, B₂ = 1, E_A^ML = 3.307 eV, E_A^Bulk = 3.224 eV and N₀ = 5.58; for absorbance, A₁ = −0.0018 nm⁻¹, B₁ = 1.75, A₂ = −0.0009 nm⁻¹, B₂ = 1, E_A^ML = 3.304 eV, E_A^Bulk = 3.253 eV and N₀ = 6.92. The resonances from the extinction spectra are increasingly red-shifted for thicker sheets compared with those from absorption, which is attributed to the growing contribution of light scattering from larger sheets, itself red-shifted relative to the absorbance (Fig. 5A).

Time-dependent absorbance spectra, first-order decay plots, Arrhenius plot and activation energy versus nanosheet length

Fig. 6: Decomposition kinetics in air.

Nanosheets are often more sensitive to their environment than the bulk because of their much larger surface area, and several of the techniques above had hinted at oxidation. The team therefore quantified the degradation: dispersions of large, medium and small sheets were exposed to air and stirred at 20, 40 and 60 °C, with absorbance spectra taken at set intervals for up to 672 h, or 28 days (Fig. 6). The result is reassuring in one respect and cautionary in another: the half-lives are long, more than 30 days for every fraction even at 60 °C, but the activation energies are remarkably low, 6–19 kJ/mol, and they fall with decreasing sheet size, which points to degradation starting at the edges. The kinetic analysis is given in the sixth box.

▸ α-RuCl₃: decomposition kinetics in air

Before each measurement the samples were bath-sonicated for about 2 min to rule out aggregation or sedimentation. The spectra of large sheets stirred at 60 °C (Fig. 6A) change substantially in the UV region over time, a sign of structural change, while in the visible region between 500 and 800 nm the signal decreases systematically with its shape retained, so that only RuCl₃ contributes there. The absorbance at 525 nm proved the best-behaved measure for all sizes and temperatures and follows a single exponential decay. Its natural logarithm plotted against stirring time gives straight lines (Fig. 6B), consistent with (pseudo) first-order kinetics. The authors cautioned that this simplicity is surprising: in solution a solvation cage can make the rate diffusion-controlled, edges and basal planes are different reaction sites, and XPS had found several products (oxides and hydroxides). The macroscopic average nevertheless follows (pseudo) first-order kinetics well, so linear fits on the semi-logarithmic scale, which have fewer degrees of freedom than exponential fits, were used to extract the half-lives.

Table 2 of the paper lists the result. For large sheets (0.1–0.4k g) the half-life is 2596 ± 46 h at 20 °C, 2212 ± 25 h at 40 °C and 1898 ± 49 h at 60 °C; for medium sheets (6–12k g) 2083 ± 24 h, 1440 ± 22 h and 974 ± 20 h; for small sheets (22–50k g) 1953 ± 84 h, 1237 ± 14 h and 769 ± 20 h. An Arrhenius plot of the logarithm of the half-life against the inverse temperature (Fig. 6C) is reasonably linear even with only three temperatures per size and gives activation energies of 18.9 ± 0.8 kJ/mol for the large, 15.4 ± 0.8 kJ/mol for the medium and 6.4 ± 0.2 kJ/mol for the small sheets. Plotted against the mean sheet length (Fig. 6D), the activation energy rises with size, which implies that decomposition needs less energy at the edges than on the basal planes. The values are lower than for WS₂ monolayers in aqueous surfactant or for Ni₂P₂S₆^[21], but the half-lives are relatively long: although degradation sets in at moderate temperatures, the time available before a significant part of the material is affected is reasonable for all fractions, in agreement with aging studies on micromechanically cleaved RuCl₃^[20]. Because the reaction is slow yet has an activation energy below room temperature, the molecular kinetics are likely complex, and the analysis should be seen as an approximation.

The study demonstrates additive-free liquid exfoliation of α-RuCl₃ into nanosheets of different sizes and thicknesses in an inert atmosphere, separated into fractions by established cascade centrifugation. TEM confirmed the structural integrity and crystallinity of individual sheets, and Raman spectroscopy, XPS and XRD, averaging over many sheets, supported the picture while exposing the material's tendency to oxidize. For the first time, susceptibility was measured on α-RuCl₃ nanosheets in a liquid medium and compared with randomly restacked sheets in drop-cast films. No QSL state could be confirmed for any sheet size; instead, high-temperature antiferromagnetic correlations are suppressed on downsizing while a sharp, 3D-like antiferromagnetic transition appears to be stabilized. The optical response yielded metrics for the average layer number and the concentration in dispersion, with an unusually small change of the extinction and absorbance intensity ratio with lateral size that, although qualitatively similar to other material systems^[21]^,[45]^,[46], is too small to serve as a reliable metric.

"We consider the presented results important for future applications exploiting magnetic properties of nanosheets," the authors conclude. "The low activation energy for the material decomposition emphasises that the exfoliation, storage and processing parameters can lead to significant differences in material characteristics attributed to partial oxidation of the nanomaterial and have to be studied carefully before applications can be considered."

What the work changes is the starting point: pristine, undoped α-RuCl₃ nanosheets of controlled size can now be made in quantity and in liquid, and their magnetism can be studied as a function of size rather than only in bulk crystals or single mechanically cleaved flakes. The atomic-scale proof that the sheets kept their trigonal lattice, and the first direct comparison of experimental HRTEM images with simulations of the known polymorphs, came from aberration-corrected low-voltage TEM at 80 kV at Ulm University, which also set the limit: below about six layers the beam alters the lattice faster than it can be imaged. Finding out how the magnetism of such ultrathin sheets develops, and whether the stabilized antiferromagnetic phase or a spin liquid wins at the monolayer limit, is the next step.

Resource:
Synnatschke, K., Jonak, M., Storm, A., Laha, S., Köster, J., Petry, J., Ott, S., Szydłowska, B., Duesberg, G. S., Kaiser, U., Klingeler, R., Lotsch, B., Backes, C. (2023).
Sonication-assisted liquid exfoliation and size-dependent properties of magnetic two-dimensional α-RuCl₃.
J. Phys. D: Appl. Phys. 56(27), 274001.
https://doi.org/10.1088/1361-6463/accc3e
