Beam Damage in N-Doped Carbon
September 24, 2012 – Nitrogen makes graphene and carbon nanotubes more sensitive to the electron beam, but not in the way theory had predicted. A team from five European countries combined DFT molecular dynamics with 80 kV AC-HRTEM on an FEI Titan in Ulm, 80 kV TEM of nanotubes at room temperature and −100 °C at Aalto University and 100 kV STEM-EELS in Orsay. The beam does not knock out the nitrogen atom, but a carbon atom next to it, which turns substitutional nitrogen into pyridinic nitrogen.
Electron beam effects in carbon nanostructures have been studied for decades[1], yet the damage done by the beam could be measured atom by atom only recently, thanks to low-voltage aberration-corrected electron microscopy and the newly discovered two-dimensional materials. Earlier in 2012, an experiment and simulation carried out within the SALVE project gave the first accurate prediction of the radiation damage in pristine graphene[2],[3]. It turned out that the damage can be described completely by elastic knock-on collisions between the electrons and the carbon nuclei, with the displacement cross section from the McKinley–Feshbach formula[4], once the lattice vibrations are taken into account[2]. This agreed with an earlier estimate that heating by the beam has only a negligible effect on a graphenic material[5]. The old assumption of a sharp knock-on threshold slightly above 80 kV[1] gave way to a smooth onset between about 80 and 110 kV[2].
Much less was known about carbon doped with nitrogen. The only earlier study of beam damage in nitrogen-doped nanotubes used a tight-binding model[6]. It predicted a displacement threshold below 14 eV for a nitrogen atom that substitutes a carbon atom in flat sp2 carbon, so 80 kV electrons should knock it out quickly. The experiments said otherwise: nitrogen-doped single-walled carbon nanotubes (N-SWCNTs) can be imaged stably at 80 kV[7], and aberration-corrected high-resolution TEM (AC-HRTEM) had shown that nitrogen-doped graphene (N-graphene) grown by chemical vapour deposition (CVD) stays stable at 80 kV for long exposures[8]. Electron energy loss spectroscopy (EELS), the main tool for telling the different nitrogen sites apart, had mostly been done with dedicated scanning TEM (STEM) instruments at slightly higher voltages[7],[9], and the experiments were not accurate enough to test the theory.
“The collaboration includes 11 authors from five European countries,” recounts Toma Susi from Aalto University, lead author of the study. “We’d like to move towards understanding and accurately predicting radiation damage in the TEM, to find the optimum imaging conditions for every material,” says Ute Kaiser, who led the HRTEM investigation within the SALVE project.

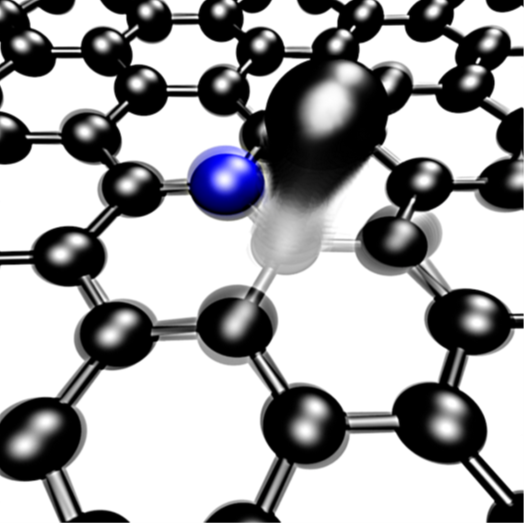

The team combined dynamical density functional theory (DFT) simulations with three electron microscopes. An imaging-side aberration-corrected FEI Titan 80-300 in Ulm recorded N-graphene by AC-HRTEM at 80 kV. A double aberration-corrected JEOL JEM-2200FS at Aalto University imaged N-SWCNTs at 80 kV, at room temperature and at −100 °C. A VG-HB501 STEM in Orsay recorded EELS time series of N-SWCNTs at 100 kV. All three show the same thing, contrary to the earlier estimate: the beam does not knock out the nitrogen atom, but one of the carbon atoms next to it (Fig. 1). The substitutional nitrogen thereby becomes a pyridinic one. Such events are rare at 80 kV, but they become important at the higher voltages typically used for EELS, so the beam changes the very structure that the spectrum is meant to identify.
Why nitrogen?
Two-dimensional graphene[10] and its cylindrical relative, the single-walled carbon nanotube (SWCNT)[11], have exceptional physical, chemical and electrical properties. Doping them with nitrogen is a way to tailor these properties[8],[12],[13]. Significant electron doping and the opening of a band gap have been reported for N-graphene[14], and nitrogen doping also brings genuinely new properties such as electrocatalytic activity[15]. What a dopant does depends on how it is bonded: as a substitution, where a nitrogen atom simply replaces a carbon atom, or in pyridinic configurations, where it sits at the edge of a vacancy and has only two carbon neighbours[16],[17]. Aberration correction has made atom-by-atom analysis of graphene possible[18]–[20], including the direct imaging of nitrogen sites[8].
Thresholds from first principles
The study started with simulations. To model an electron–nucleus impact, one atom of the structure is given a kinetic energy, and the time evolution after the impact is followed by DFT molecular dynamics[2],[21]. The displacement threshold TD is the smallest kinetic energy that removes the atom from its site without an immediate recombination with the vacancy it leaves. This was calculated for the most widely discussed configurations: substitutional nitrogen, the single, double and triple pyridinic vacancies (1NV, 2NV, 3NV) and the quadruple pyridinic divacancy (4ND) (Fig. 2). The relaxed structures agree with the literature[22],[23]. All thresholds were calculated for a displacement perpendicular to an atomically flat sheet. For pristine graphene the improved value is 22.30 eV.

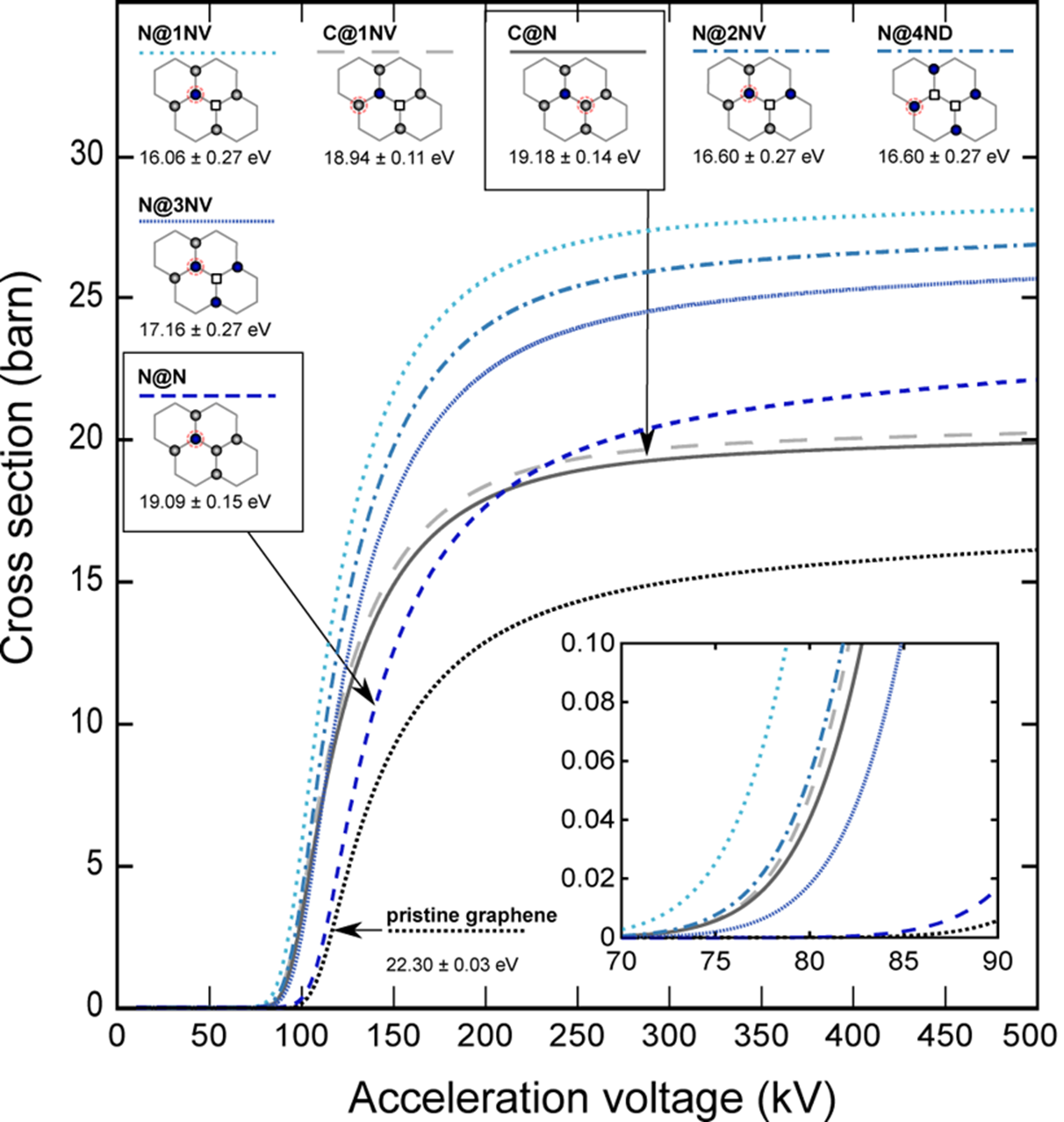

For the substitutional nitrogen atom, DFT gives 19.09 eV, far above the earlier tight-binding estimate of less than 14 eV[6]; none of the calculated thresholds is below 16 eV. The same discrepancy had been seen for hexagonal boron nitride monolayers, where a similar tight-binding model[24] gave lower thresholds than the more accurate DFT calculations[25]. The box below compares the two predictions.
From the thresholds, the displacement cross sections σ follow from the McKinley–Feshbach approximation[1],[4], taking into account the lattice vibrations, which add considerably to the energy transferred from an electron to a nucleus[2]; the velocities of the target atoms follow the Debye model with a Debye temperature of 1287 K[26]. Because carbon and nitrogen differ in mass and atomic number, their cross sections differ even where the thresholds are similar. Fig. 2 shows σ from 0 to 500 kV. For a substitution, the carbon atom next to the dopant (C@N) has a higher cross section than the dopant itself (N@N) up to more than 200 kV, and there are three such carbon atoms for each nitrogen. The tendency holds for every configuration: even where a nitrogen atom has the higher cross section, its carbon neighbours are more numerous. Under the beam, the structure of a dopant site is therefore likely to change by the loss of a carbon atom before the nitrogen atom itself is sputtered.
Watching the carbon neighbour leave

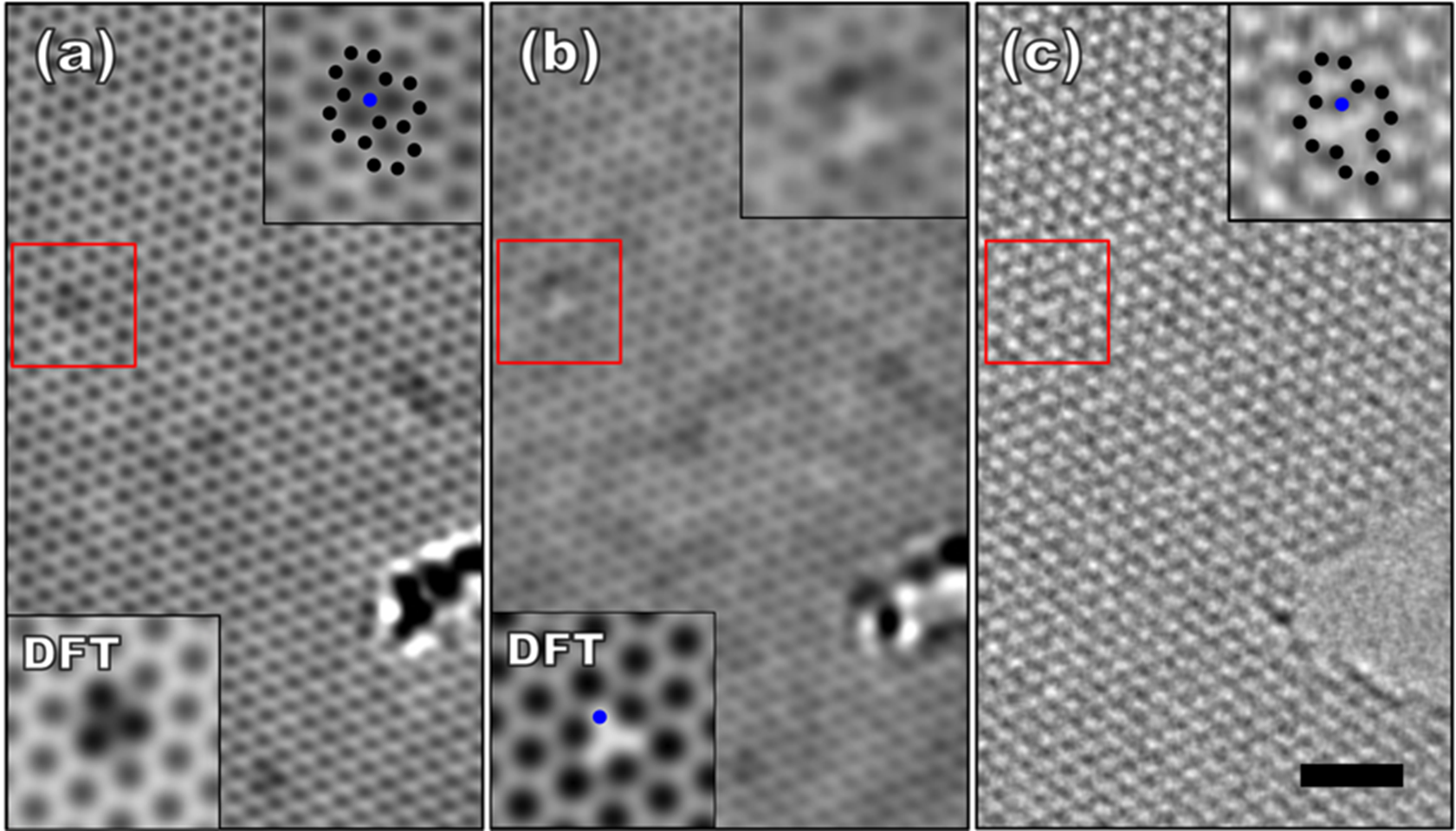

To test the simulations, the Ulm team imaged N-graphene at 80 kV with high doses, both for a good signal-to-noise ratio and to estimate the cross sections. Only clean, free-standing monolayer areas were used. Atomic potentials from all-electron DFT calculations show that a carbon atom next to a nitrogen atom scatters the electrons differently from a carbon atom elsewhere in the sheet. In a suitably defocused image (−18 nm), a substitution therefore appears as three darker bonds around a central atom[8], which is confirmed by DFT image simulations[27] (Fig. 3a).
At the start of the experiments, all nitrogen atoms observed were substitutions, in agreement with earlier studies[8],[12],[28],[29]. Based on the tight-binding work[6], with lattice vibrations included[2], a cross section of more than 2 barn was expected for displacing such a nitrogen atom at 80 kV. In one experiment with doses up to 2.5 × 107 e−/Å2, eight substitutional nitrogen atoms were in the field of view, in an area of about 240 nm2, in good agreement with the doping level of 0.1 atom % of the material. With 2 barn, at least one of them should have been sputtered at about one fifth of the maximum dose. None of the nitrogen atoms was sputtered in any of the experiments, which confirms the low cross section from DFT.
Instead, the dopant sites changed in another way (Fig. 3). The first atom knocked out by the beam is one of the three carbon atoms next to the nitrogen, as the calculations predict. The nitrogen atom remains with two neighbours, and the two under-coordinated carbon atoms bond to each other and close a pentagon: the substitution has become a 1NV. Its contrast matches the DFT image simulation, and an unprocessed image at Scherzer defocus (−9 nm) shows the 5–9 vacancy next to the nitrogen atom directly. By the end of this experiment, three of the eight substitutions had turned into 1NV. In total, five of the 35 imaged sites converted at doses up to about 2.5 × 107 e−/Å2. This gives an upper limit of 0.16 barn for the cross section of the ejected carbon atoms, against about 0.03 barn calculated. Given the experimental uncertainties and the sensitivity of the calculation at such small values, this is a good agreement. All comparisons between experiment and theory are collected in the validation box below.

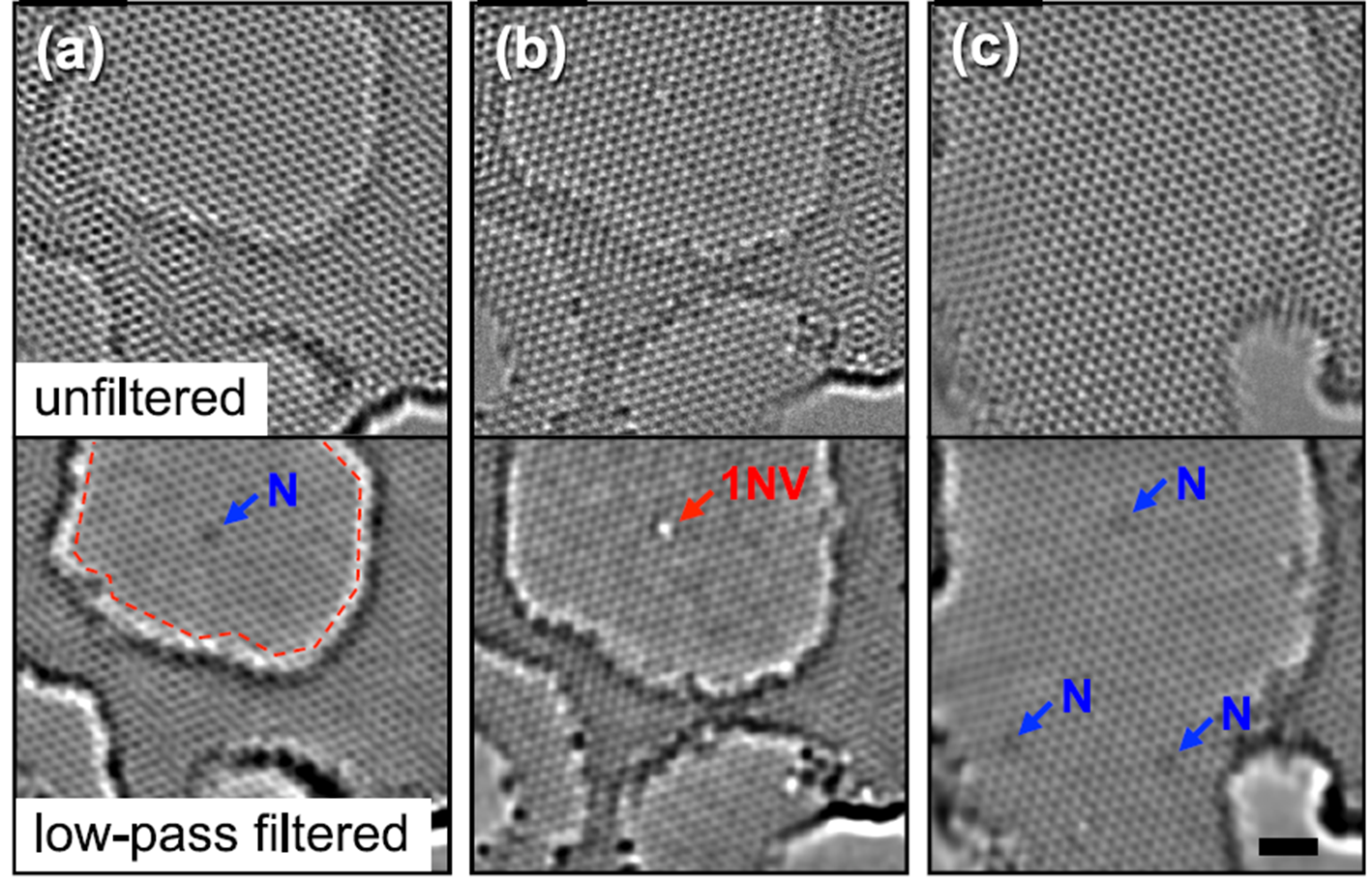

The atoms can also return. In a long image series (Fig. 4), a substitution turned into a 1NV and later back into a substitution: the vacancy was refilled. This is direct evidence for defect healing by migrating adatoms at room temperature, and it shows that the healing is slow enough to be caught by atomic-resolution imaging.
Curved walls

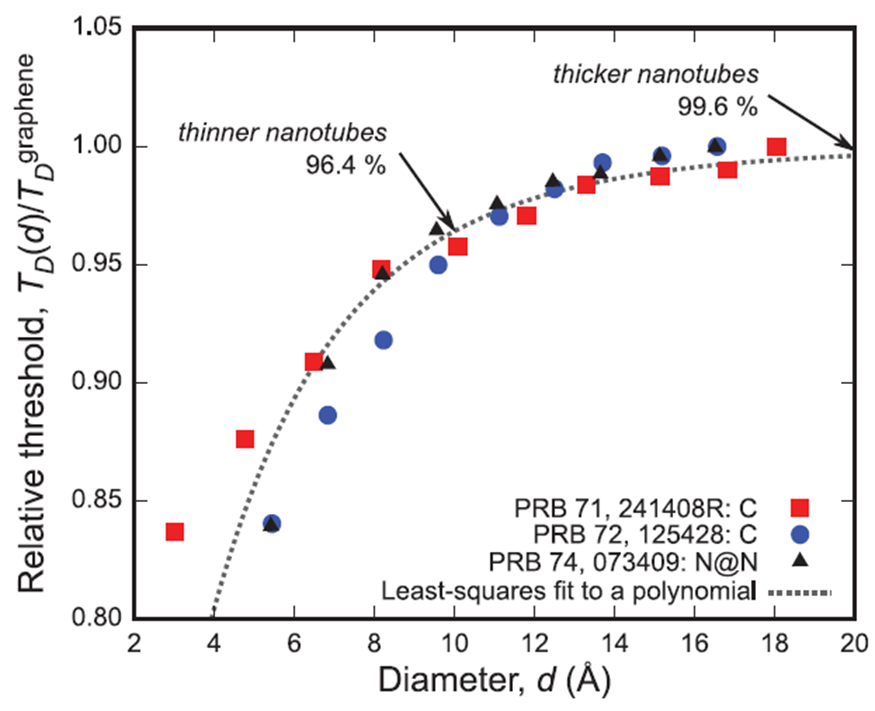

Calculations for curved structures or for other displacement directions were beyond the computing power available. The effects of curvature[6],[30],[31] and of the displacement direction[5],[24],[32] were, however, known from earlier studies. For a tube diameter of about 2 nm, the thresholds approach those of graphene, and they fall with increasing curvature for thinner tubes. Atoms on the “sides” of a tube, as seen by the beam, have much higher thresholds[5], so the atoms at the “top” and “bottom” should dominate the apparent cross section. A polynomial fitted to literature values[6],[30],[31] gives the threshold of a tube relative to graphene: about 96.4 % for 1 nm and 99.6 % for 2 nm (Fig. 5). With it, the graphene values were converted into thresholds and cross sections for 1 and 2 nm tubes, at 80 kV and −100 °C and at 100 kV and room temperature, the conditions of the experiments that follow; the box below lists them.

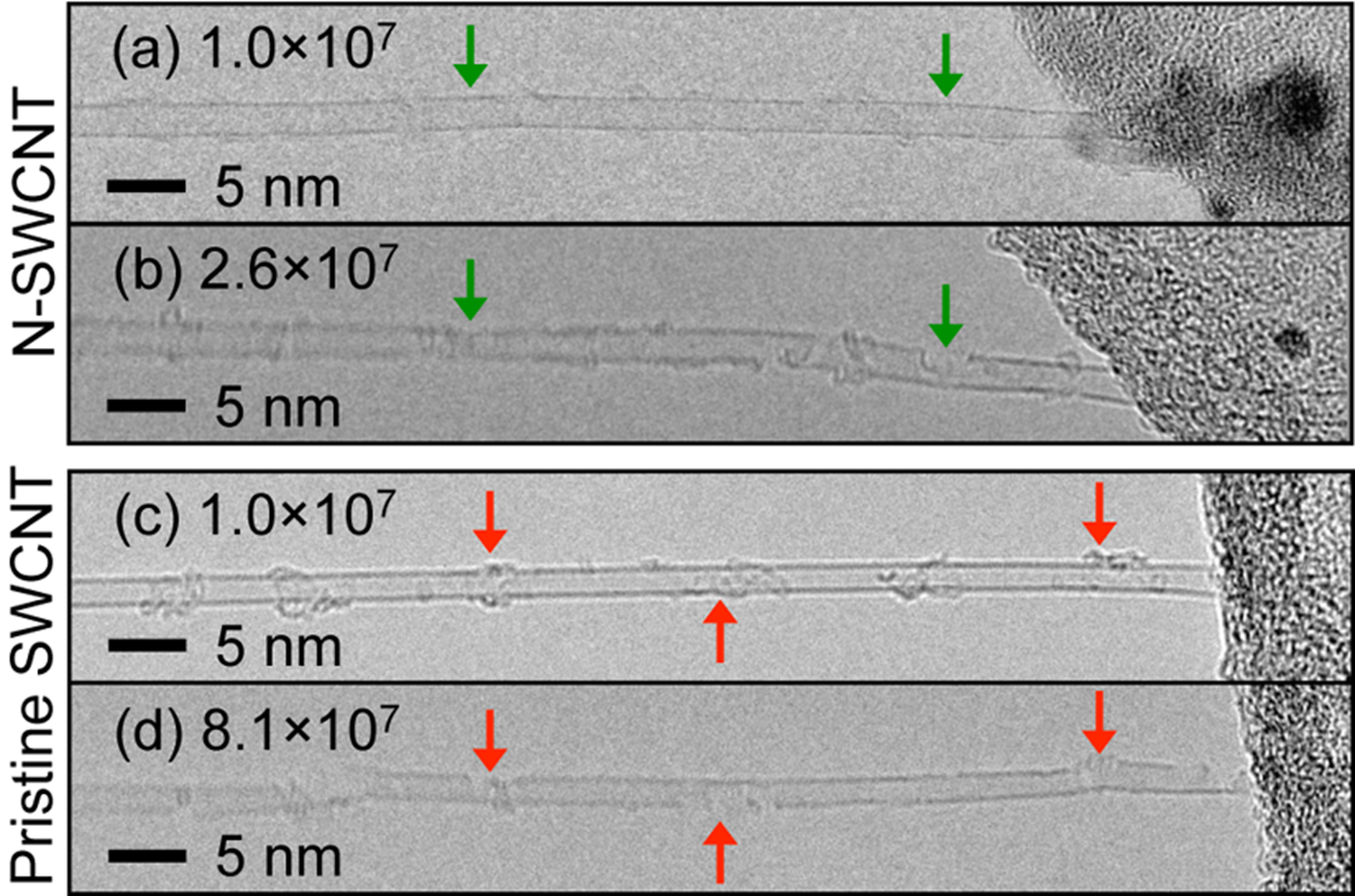

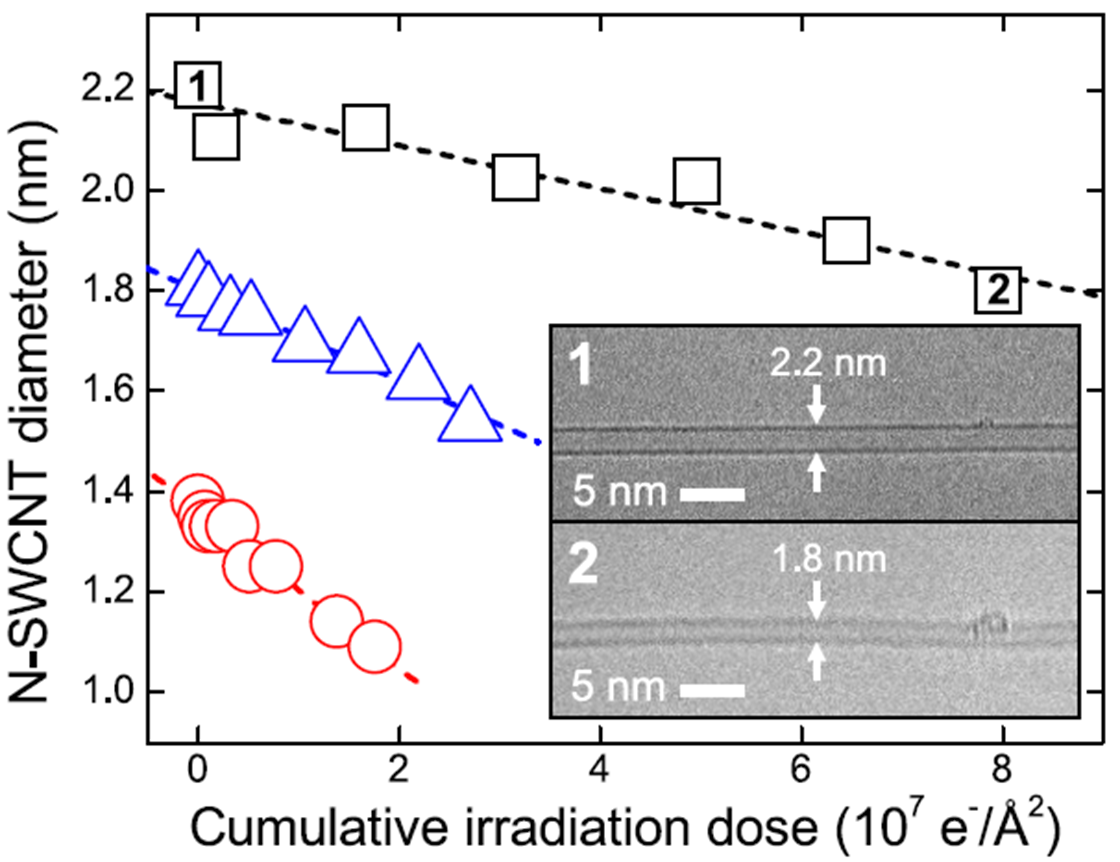

The N-SWCNTs were grown by floating-catalyst CVD with ammonia as the nitrogen source[7],[33]; pristine tubes were grown the same way without ammonia. Imaging the nitrogen atoms in the tubes was not possible, but the damage could be quantified. At 80 kV and room temperature, no localized damage appeared, yet the tubes narrowed around the beam centre at doses of the order of 107 e−/Å2 (Fig. 6). This is attributed to self-healing by thermally activated migration of atoms together with reconstructed multivacancies. The narrowing includes all processes, from knock-on to healing and reconstruction, and yields an apparent cross section: 0.2, 0.5 and 1.1 barn for tubes with initial diameters of 2.2, 1.8 and 1.4 nm. Thinner tubes lose atoms faster, as the falling threshold predicts, and the values lie in the expected range, since many sputtered atoms were presumably three-coordinated atoms in reconstructed vacancies, with cross sections of the order of 1 barn.
Freezing out self-healing
Cooling to −100 °C in a cryo-transfer holder should practically stop the migration of adatoms, by about three orders of magnitude, and with it the healing that hides the primary damage. At −100 °C, the N-SWCNTs showed clear damage at doses similar to those that damage N-graphene, about 1 × 107 e−/Å2, while pristine tubes tolerated several times higher doses under otherwise identical conditions (Fig. 7). The difference is attributed to increased knock-on damage in the doped tubes. Tubes of about 2 nm tolerated about 40 % higher doses than 1.1 nm tubes, doped or not, in quantitative agreement with the calculated cross sections. The box below compares doped and pristine tubes.
Spectroscopic proof at 100 kV
EELS of N-SWCNTs is typically done at 100 kV[7],[33]–[35]. Substitutional and pyridinic sites have different EELS signatures[36], and the conversion of one into the other is much more likely at 100 kV than at 80 kV (Fig. 2). Reanalysing their own earlier data, the authors estimate maximum doses of about 1 × 106 e−/Å2, which would have converted up to 3 % of the substitutions in 1 nm tubes into pyridinic sites: too few to notice. Doses had not been reported in the literature.

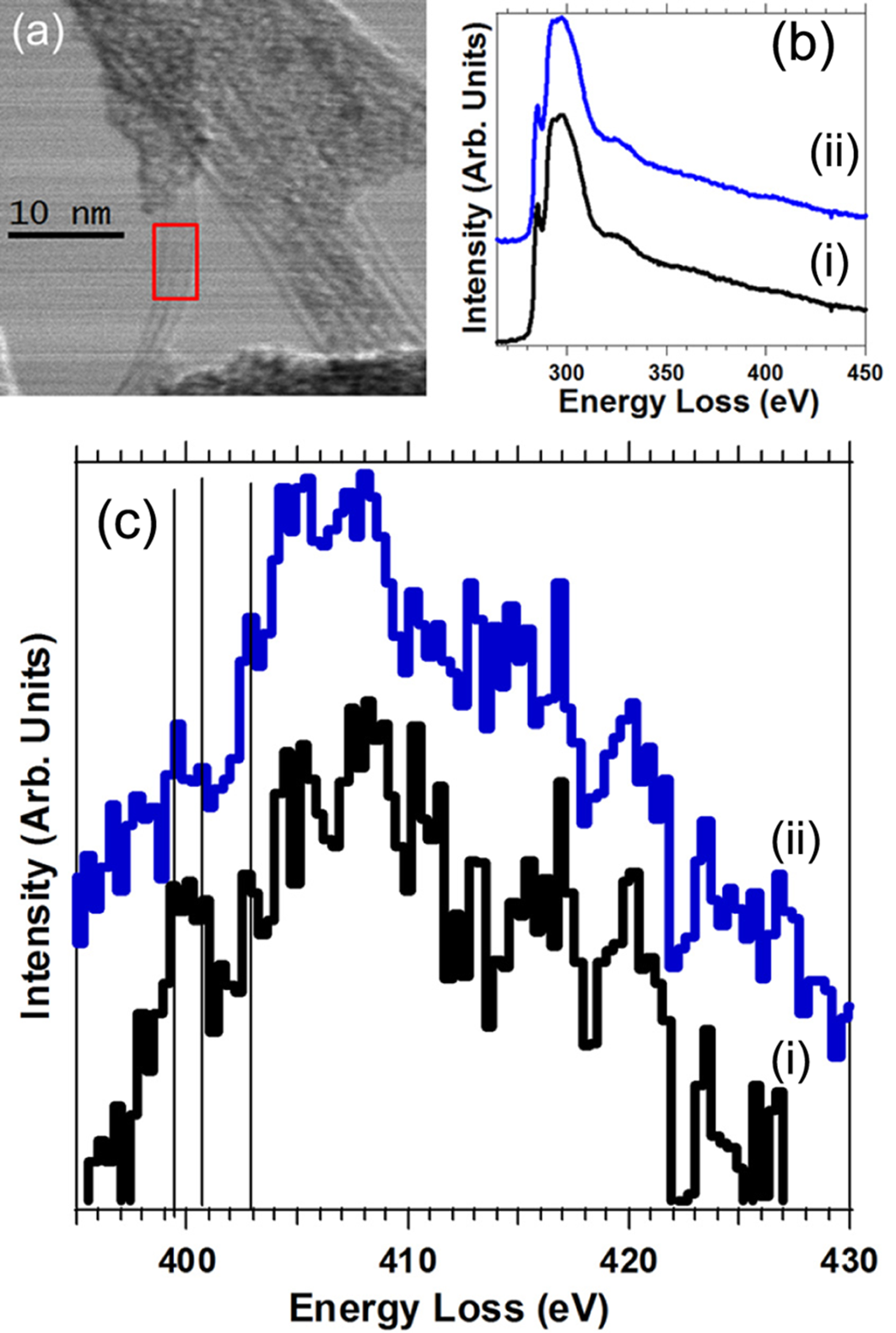

To see the conversion, the team in Orsay recorded a time series of spectra at a higher dose, in the chronospectrum mode[37], with the VG-HB501 STEM at 100 kV. They used N-SWCNTs made by laser vaporization, which carry fewer adsorbates and are slightly better crystallized, in a small bundle of clean tubes about 1.4 nm in diameter (Fig. 8). The carbon K-edge shows a π* peak at about 285 eV and a well-defined σ* band from about 292 eV, a sign of well-crystallized walls. In the nitrogen K-edge, the contribution at about 399 eV comes from pyridinic and the one at about 401 eV from substitutional nitrogen. After a cumulative dose of about 0.9 × 107 e−/Å2, the substitutional contribution is significantly reduced. At the same time, the relative nitrogen concentration rises slightly from 0.7 to 0.9 atom % and the carbon concentration falls from 96.5 to 96.0 atom %. Carbon atoms next to substitutions are sputtered, turning them into pyridinic sites, as predicted by the simulations and seen directly in N-graphene. Additional contributions at about 403 and 406 eV would match the core levels of pyridine-N-oxide and C–NO2[38].
To avoid misidentifying the dopant structures of the pristine material, the dose must be limited, or the time series must show no change during the measurement; alternatively, the microscope can be run at 60 kV or below[18],[19].
Challenges named by the authors
The dynamical DFT simulations are expensive, so only displacements perpendicular to an atomically flat sheet could be calculated; displacements in other directions, with neighbours of different mass, may have lower thresholds[32], and curved tubes could only be treated with an empirical fit. In the tubes, the resolution was not good enough to image the nitrogen atoms: it would need excellent stability, high vacuum, sample quality and microscope resolution at once. The measured tube diameters are approximate, since charging or vibrations under continuous irradiation blurred the images. At room temperature, self-healing and reconstruction partly hide the knock-on damage and make the tubes look more stable than they are, while cooling to −100 °C increased the adsorbates on them. The 1NV configuration was never seen before the beam created it, and the origin of the EELS signals at 403 and 406 eV remains open.
What present models can – and can’t
“We have now shown that also for more complex structures it is possible to model the knock-on threshold of flat structures using the presently available DFT calculations. When curved structures are considered and when electron–electron interactions are important, the required computational power is still higher than what is presently available. We demonstrated that at 80 kV, radiation damage is mainly knock-on damage. At lower accelerating voltages below the knock-on threshold, radiation damage will be determined by electron–electron interaction and new models will have to be applied,” says Ute Kaiser, director of the SALVE project. “The collaboration within this project demonstrated how the cutting-edge technology in simulation and experiments contributes to the advancement of our understanding of the interaction of electrons and matter. The increasing resolution of the electron microscope has significantly contributed to provide atomically resolved data in the last 5 years, and the extension of the voltage range where atomic resolution is available will hopefully contribute even more comprehensive data in the future.”
Resource:
Susi, T., Kotakoski, J., Arenal, R., Kurasch, S., Jiang, H., Skákalová, V., Stéphan, O., Krasheninnikov, A. V., Kauppinen, E. I., Kaiser, U., Meyer, J. C. (2012).
Atomistic Description of Electron Beam Damage in Nitrogen-Doped Graphene and Single-Walled Carbon Nanotubes.
ACS Nano 6(10), 8837-8846.
https://doi.org/10.1021/nn303944f
