Harald H. Rose joins Ulm University in 2010

June 1, 2010 – Harald H. Rose, who designed the first practical aberration corrector for the electron microscope and is a world-leading expert in theoretical electron optics, has come to Ulm University as Senior Professor within the SALVE project.

For most of the twentieth century, a law of physics seemed to cap what an electron microscope could see. At medium voltages the wavelength of the electrons lies far below 1 Å, about 100,000 times shorter than that of light, so the microscope could in principle resolve the distances between atoms, but the aberrations of its lenses stood in the way. Harald H. Rose spent his career proving that it could be outwitted, and the aberration-corrected microscopes now found in laboratories worldwide are the result. In 2010, the theorist who designed the first practical corrector came to Ulm. From 1 February to 31 May 2010, the Collaborative Research Centre SFB 569 of Ulm University hosted him as a guest scientist within the SALVE project, and he then took up a senior professorship at Ulm University endowed by Carl Zeiss.

A student of Scherzer
In 1931, Max Knoll and Ernst Ruska built the first two-stage magnetic electron microscope, the first transmission electron microscope (TEM)[1], and as early as 1934 its resolution surpassed that of the light microscope[2]. Rose’s work goes back to a time about thirty years after the invention of the (scanning) TEM[3],[4]. In 1959 he was a doctoral student of Otto Scherzer, professor of theoretical physics at the Technische Hochschule Darmstadt, and his thesis examined the imaging properties of arbitrary multipole systems, already with a feasible aberration corrector in mind (see box). In 1967 and 1971 he designed improved correctors for spherical and chromatic aberration[5],[6], and their basic function was demonstrated experimentally in the so-called Darmstadt Project in 1977 and 1982. After Scherzer’s death in 1982 the project was abandoned, although it had succeeded as far as it went. In 1972, Rose joined the Chicago corrector project of Albert V. Crewe, the inventor of the modern STEM[7], for one year, working in his group at the University of Chicago. Crewe’s corrector, made of four magnetic quadrupoles and octopoles, was built and tested in a scanning transmission electron microscope from 1972 to 1978, but it did not improve the resolution[8]. In 1973, together with Plies, Rose worked out how to correct systems with curved optical axes[9], and in 1982 he co-designed an electric and magnetic dodecapole lens[10].

▸ Historical aspects of the Darmstadt school

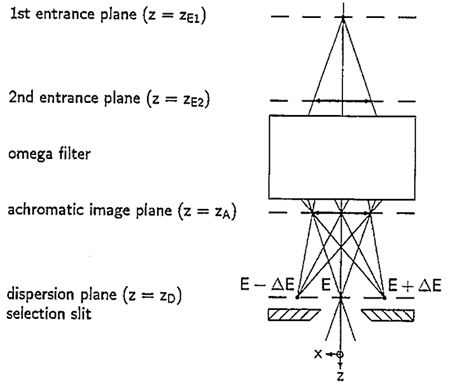

Energy filters and inelastic electrons
Rose also advanced electron microscopy well beyond aberration correction. In 1978 he addressed the challenges of energy filters[40]: narrowing the energy spread of the electrons that form an image reduces the loss of contrast. He worked on the theory of image formation by scattered electrons, in particular by inelastically scattered electrons, which lose energy in the sample[41],[42]. This is of great importance at low voltage, where inelastic scattering increases.

Spectral analysis of these electrons opens the way to the chemical and electronic properties of a sample. Rose’s approach was put into practice in 1986: his design of a corrected imaging magnetic energy filter[43], the so-called omega filter, was built for the 100 kV transmission electron microscope at the Fritz Haber Institute in Berlin. A very sensitive alignment procedure allowed the filter to run at high energy resolution.

The corrector that changed microscopy
In 1986, together with Zach, Rose also turned to low-voltage scanning electron microscopy and showed how secondary electrons can be detected efficiently there[44]. By then, correctors had been built in England[45], Tübingen[46] and Chicago, and none of them had improved the resolution of the microscope. Hexapoles promised a simpler route: in 1965 Hawkes found that they produce rotationally symmetric third-order combination aberrations[47], and in 1979 Beck showed that a round lens combined with two hexapoles can produce a negative spherical aberration. His system, however, introduced a large fourth-order aperture aberration that prevented an appreciable gain in resolution[48]. Even in 1990, most electron microscopists were not convinced that a hardware corrector could improve resolution and regarded it as unthinkable for technical reasons. In that year, Rose published the design that made the breakthrough possible[24]: a corrector built from much simpler electron-optical elements, a double-hexapole element with four additional, symmetrically placed round lenses.

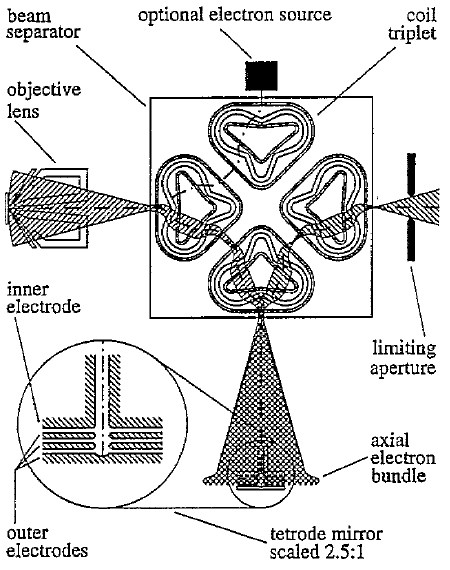

In 1992, together with Preikszas, he developed a corrected low-energy electron microscope (LEEM) with a versatile beam separator[49], a concept later used in several instruments. The alignment of a spherically corrected electron microscope requires about 48 parameters to be set with an accuracy of 1:107[50], yet corrected instruments began to challenge the uncorrected ones. Meanwhile, Rose showed that the eikonal method used in lens design is gauge invariant, which simplifies the calculation of the required magnetic vector fields[51]. Energy resolution remained a challenge: in 1994 Rose described the omega filter in full, from its theory to its operation[52], and in 1995 he and Krahl wrote the chapter on the electron optics of imaging energy filters for Reimer’s textbook Energy-Filtering Transmission Electron Microscopy[53].

He was also active in the simulation of TEM images and contributed to the work of Dinges on simulations that include phonon and electronic excitations[42], effects that are central to the SALVE project. In 1997 he adapted his beam separator for the SMART spectromicroscope at the BESSY II synchrotron in Berlin[54].

From the first Cs-corrected images to Cc correction for 20–300 kV
Spherical aberration also causes contrast delocalization: image details appear shifted away from their true position. In 1996, Thust and co-workers showed that these artefacts are a major obstacle to atomic-resolution analysis of defects and interfaces[55]. In 1997 and 1998, Rose, Haider and Urban achieved the breakthrough for structure analysis, hardware aberration correction in the transmission electron microscope[27],[56] (Fig. 1). Delocalization was now largely avoided, and the point resolution of a 200 kV field-emission TEM improved from 0.24 nm to 0.13 nm[56].

Materials science at the atomic scale has depended on Cs correction ever since, and the first application of a Cs-corrected TEM in materials science followed in 2002[57]. Chromatic aberration was already on the agenda: in the same year, Weißbäcker and Rose showed how a purely electrostatic corrector compensates the chromatic and the spherical aberration together[58]. In 2004 Rose published the outline of an ultracorrector that compensates all primary chromatic and geometrical aberrations[59], and a year later he described aberration-free electron microscopy as a unique tool for studying materials at the atomic level[34]. Within the German SATEM project, Carl Zeiss built a monochromated, aberration-corrected 200 kV microscope with an in-column omega filter after Rose’s design, which combined sub-ångström resolution with excellent analytical capabilities and was first tested in 2006[60]. In 2008, Haider and co-workers at CEOS set out the prerequisites for a combined Cc/Cs corrector in medium-voltage microscopes from 80 to 300 kV[32]. This was the range of the American TEAM project, which built its microscope in two stages[61]. The first, the TEAM 0.5, is Cs-corrected and monochromated but has no Cc corrector; it opened to users in 2008 and transferred information beyond 50 pm at 300 kV, against only about 70 pm without the monochromator[35]. In 2009 the combined corrector went into the final TEAM I[61]. The first application of its prototype raised the information limit at 80 kV from 1.8 Å to 1.0 Å[62].

In 2009, Rose described the future trends of aberration-corrected electron microscopy[63]. He discussed phase plates, to which he had contributed together with Barton and Benner in the work of Schröder on enhancing image contrast[64], and he treated the resolution on the specimen as a function of the instrumental and the noise-limited resolution. The latter depends directly on electron beam damage. In the same paper he sketched the TEAM corrector and an achromatic aplanat with a Rose–Kuhn corrector for about 20 to 100 kV, which would extend Cc correction down to the low voltages of SALVE; he named its realization as the aim of the SALVE project (Fig. 1).

Fig. 1 sums up the three routes, one row per corrector: on the left the corrector, in the middle the calculated information transfer (solid: with correction or monochromator, dashed: without), on the right the measured information limit, marked by circles. The curves show how the focus spread damps the image, K(g) = exp[−½(πλσ)2g4] with σ = Ccσ(E)/E[32]; the information limit lies where a curve falls to 1/e2. The top row starts with the double-hexapole corrector of 1990 (a)[24]. With Cs correction alone, a monochromator that narrows the energy width from 0.75 to 0.17 eV, as on the SALVE I prototype[36], improves the limit from 520 to 248 pm at 20 kV and from 181 to 86 pm at 80 kV (b)[36],[65]. For the TEAM 0.5 at 300 kV, the same formula gives the 86 and 43 pm that Kisielowski and co-workers calculated for 0.8 and 0.2 eV[35]. In 2011, Young fringes at 80 and 20 kV, without and with monochromator, on the SALVE I prototype confirmed this (c–f): with the monochromator they reached 85 pm at 80 kV and 240 pm at 20 kV[36], against 117 pm at 80 kV without a monochromator on the Cs-corrected instrument at Harvard[36],[66]. The middle row shows the TEAM corrector (g)[32],[63]. Cc correction should bring the limit to 83 pm at 80 kV and 50 pm at 200 and 300 kV; the curves (h) are redrawn from[32], and the 50 kV curve, 108 pm, is extrapolated. In 2012 the monochromated TEAM 0.5 came close to these values without a Cc corrector: 45 pm measured at 300 kV, about 95 and 120 pm estimated at 80 and 50 kV, and 180 pm at 20 kV[65]; (i–l) show its power spectra of silicon at 300, 80, 50 and 20 kV. These power spectra show reflections beyond these limits, but they arise from dynamical scattering in the crystal and do not mean a higher resolution[65]. The bottom row covers 20 to 80 kV: the Rose–Kuhn corrector (m)[63] was expected to improve the limit from 585 to 116 pm at 20 kV and from 204 to 81 pm at 80 kV, assuming a residual focus spread of 1 nm (n)[67]. In 2016 Young fringes of the finished SALVE microscope at 80, 60, 40 and 20 kV (o–r) reached 76 pm at 80 kV and 139 pm at 20 kV[67]. Rose’s work is held in very high regard worldwide, and scientists across the field have said so (see box).

▸ Reception: what colleagues wrote

Why Ulm, and why low voltage
Ulm University recognized the potential of aberration correction early and ordered one of the first aberration-corrected transmission electron microscopes worldwide in 2005. The instrument was aligned not only at high voltage, where it opened completely new insights into the nanoworld (see, for example,[72]), but, for the first time, also at its lowest voltage of 80 kV, in order to image beam-sensitive objects at high resolution. As early as 1970, Otto Scherzer had pointed out that radiation damage of the object limits the resolution actually reached in an image[73]. The image contrast at low voltage and the details of how the corrector works had to be understood. Soon after the microscope was installed, Ute Kaiser invited Rose to give a lecture series on aberration correction to her group, Electron Microscopy of Materials Science (EMMS), the starting point of the senior professorship that Carl Zeiss endowed within the SALVE project.

A teacher for SALVE
“Through his whole theoretical and practical background and his outstanding, numerous contributions to electron microscopy, Harald Rose matches exactly the challenging aims of the development of low-voltage microscopy,” said Ute A. Kaiser, scientific leader of the SALVE project. “We could not be more pleased. His new position combines the advantages of close and regular research contact with the SALVE members at Ulm University with exceptional possibilities for our students to gain inspiration, motivation and enthusiasm from a physicist who is a world-leading expert in his field and has lifelong teaching experience.” Rose looked forward to passing on his knowledge and experience to students at Ulm University and to the participants of the SALVE International School. His honours up to 2010 are listed in the box below.

▸ Awards and honours until 2010

Update – June 6, 2022

The news article of June 1, 2010 ends above. Later work is listed below.

From doublet to quadruplet: a four-hexapole corrector in theory
With two hexapoles, the six-fold astigmatism of fifth order, A5, limits the aberration-free angular range to about 30 mrad. The triple-hexapole DELTA corrector of JEOL[74] and the advanced double-hexapole corrector of CEOS[75] reach about 70 mrad; then the three-lobe aberration of sixth order, D6, sets the limit. In 2022, Shigeyuki Morishita and Hidetaka Sawada of JEOL calculated that a corrector with four hexapoles, a hexapole quadruplet, would extend the range to almost 100 mrad at 300 kV[76]. Beyond that, aberrations of seventh order set the limit: the spherical aberration C7 and the chaplet aberration.

Once the spherical aberration is corrected, the chromatic aberration limits the resolution. The authors nevertheless consider the larger geometrically aberration-free angle worthwhile, namely for the tilt range in tilt scanning, where the beam is tilted and the illumination is guided over a large angular range[76].

The four-hexapole design goes furthest. Because the work is shared among four hexapoles, each of them can be thinner, and thin hexapoles produce fewer higher-order aberrations; in return, the corrector becomes long. For comparison, the authors propose two hexapoles with a nonuniform field. This design is compact, so the microscope needs less room height. It reaches a smaller angle, and its off-axial aberrations may be larger; the authors have not yet calculated them[76].

In the same year, CEOS together with JEOL removed D6 with three hexapoles and reached at least 70 mrad; ronchigrams even showed 80 mrad (next update)[77].

Update – August 1, 2022

A corrector with three hexapoles
Besides correcting the spherical aberration, hexapole correctors produce intrinsic aberrations of three-, six- and ninefold symmetry. In the early designs, the six-fold astigmatism of fifth order, A5, limited the usable aperture. By 2018, three approaches had removed it: the advanced two-hexapole corrector of CEOS[75], the triple-hexapole DELTA corrector of JEOL[74], and the corrector presented by Thermo Fisher Scientific and CEOS for 30–300 kV[78]. After that, the three-lobe aberration of sixth order, D6, set the limit: for an objective lens with a gap of about 5 mm, the π/4 limit of its phase shift lay just below 40 mrad. Even larger apertures are wanted with monochromators, which improve not only the lateral but also the depth resolution[77].

In 2022, Stephan Uhlemann and colleagues at CEOS presented the first evidence that a new corrector with three hexapoles removes D6 together with the higher-order spherical aberrations[77]. Its lengths and focal lengths are chosen so that a deliberate combination aberration of A5 with the central hexapole field cancels the D6 of the corrector. Together with the objective lens, all spherical aberrations up to C7 vanish, while the chromatic aberration is no larger than in the advanced hexapole correctors. For 30–300 kV, the π/4 limit lies at 5–7 mrad without a corrector, at 27–30 mrad with a conventional hexapole corrector and at 35–40 mrad with an advanced one; with the new corrector it moves to about 70 mrad, without compensating D6 by lower-order aberrations. First ronchigrams at 200 kV reached a radius of at least 80 mrad. The authors thank JEOL for collaboration and support.

Update – July 27, 2026

Hexapole correctors: from doublets to triplets
Rose’s double-hexapole design of 1990[24] became the most widely built aberration corrector. In 2026, Heiko Müller, Peter Hartel, Martin Linck and Stephan Uhlemann of CEOS reviewed how it has developed since the first corrected images of 1998[27],[79]. More than 1500 hexapole-type probe and image correctors are now in use worldwide, in scanning (STEM) as well as conventional transmission electron microscopes.

Shortly after the first imaging corrector, CETCOR, the two-hexapole design was adopted for STEM as CESCOR. A careful redesign led to the advanced two-hexapole corrector DCOR/ASCOR, which corrects all fourth-order aberrations and leaves the fifth-order aberrations effectively vanishing. With a cold field emission gun, a three-lobe aberration of sixth order, D6, becomes visible, but it usually does not limit the resolution. For TEM, the advanced two-hexapole correctors ATCOR/CETCOR′ avoid the loss of phase-contrast transfer that the six-fold astigmatism of fifth order, A5, causes in microscopes with cold field emission guns. They also largely reduce diffraction distortions and fourth-order off-axial aberrations; of the third-order off-axial aberrations, only the azimuthal off-axial coma remains[79].

The three-hexapole STEM corrector of 2022, now called LASCOR, is inherently free of sixth-order aberrations and doubles the semi-aperture angle compared with ASCOR. This allows, for example, a high-resolution STEM probe to be tilted above the corrector to align the specimen to a zone axis, and together with monochromated illumination the authors expect a better depth resolution. For TEM, the three-hexapole corrector BCOR was introduced mainly for electron holography and in situ imaging with a large field of view. It corrects the off-axial aberrations up to third order, including the azimuthal off-axial coma, and fully corrects the fourth-order axial aberrations and A5; it now also finds applications in cryo-electron microscopy. The first LASCOR and the first advanced two-hexapole TEM correctors were delivered to customers in 2025 and 2026[79].

Like Rose’s original design, all of these are correctors of the spherical and other geometrical aberrations. Hexapoles act only from second order on and leave the chromatic aberration untouched; correcting it still needs quadrupole and octopole elements, as in the TEAM and Rose–Kuhn correctors (box above).

Update – January 1, 2027

A CEOS energy filter in a JEOL microscope
The collaboration between CEOS and JEOL went on beyond the correctors. In 2027, Tobias Heil, Peter A. van Aken and colleagues at the Max Planck Institute for Solid State Research in Stuttgart, together with Heiko Müller, Stephan Uhlemann, Martin Linck and co-workers at CEOS and Akiho Nakamura and Masaki Mukai at JEOL, reported a microscope that joins both lines[80]. The JEOL atomic-resolution multi-dimensional TEM (ARMD-TEM), for 60 and 200 kV, combines a probe corrector and a Wien-filter monochromator with the CEOS Energy-Filtering and Imaging Device (CEFID). In this post-column filter, a 90° sector magnet with multipole and quadrupole lenses disperses the electrons, and two dodecapoles and six weak stigmators cancel its residual geometric and chromatic aberrations. For an 8 mm entrance aperture, its non-isochromaticity stays below 100 meV peak to peak and below 20 meV root mean square. The microscope stands in a room lined with Si/Fe sheets, with an active field compensation.

With the present Schottky source, series of 10,000 zero-loss spectra of 0.1 ms each, corrected for energy drift below one channel, gave energy resolutions of 15–20 meV, stable over 11 hours. Plasmon modes of aluminum nanoantennas and the acoustic and optical phonons of hexagonal boron nitride were resolved. A cold field-emission gun with its own monochromator is to follow in a second phase[80].
